TL3200AF160RRQ
ActiveE-Switch

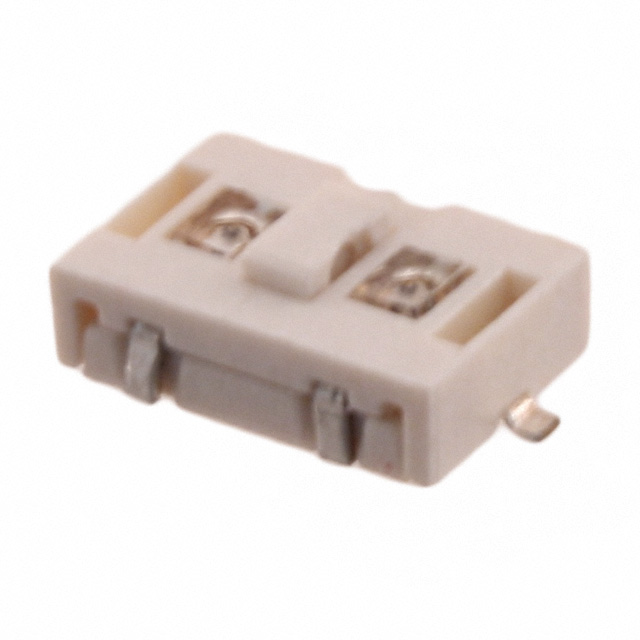

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; LED; RED; 1.6N
Deep-Dive with AI
Search across all available documentation for this part.
TL3200AF160RRQ
ActiveE-Switch
MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; LED; RED; 1.6N
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3200AF160RRQ |
|---|---|
| Actuator Height off PCB, Vertical [z] | 2.5 mm |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Red/Red |
| Illumination Voltage (Nominal) | 2.3 VDC |
| Mechanical Life | 30000 Steps |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 6.8 mm |
| Outline [y] | 4.5 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.93 | |
| 10 | $ 4.72 | |||
| 25 | $ 4.31 | |||
| 100 | $ 3.74 | |||
| 250 | $ 3.39 | |||
| 500 | $ 3.14 | |||
| 1000 | $ 2.91 | |||
| Digi-Reel® | 1 | $ 4.93 | ||
| 10 | $ 4.72 | |||
| 25 | $ 4.31 | |||
| 100 | $ 3.74 | |||
| 250 | $ 3.39 | |||
| 500 | $ 3.14 | |||
| 1000 | $ 2.91 | |||
| Tape & Reel (TR) | 3000 | $ 2.56 | ||
Description
General part information
TL3200 Series
Tactile Switch SPST-NO Top Actuated Surface Mount
