Technical Specifications
Parameters and characteristics for this part
| Specification | MASTERGAN1 |
|---|---|
| Applications | Power Supplies |
| Current - Supply | 800 çA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |

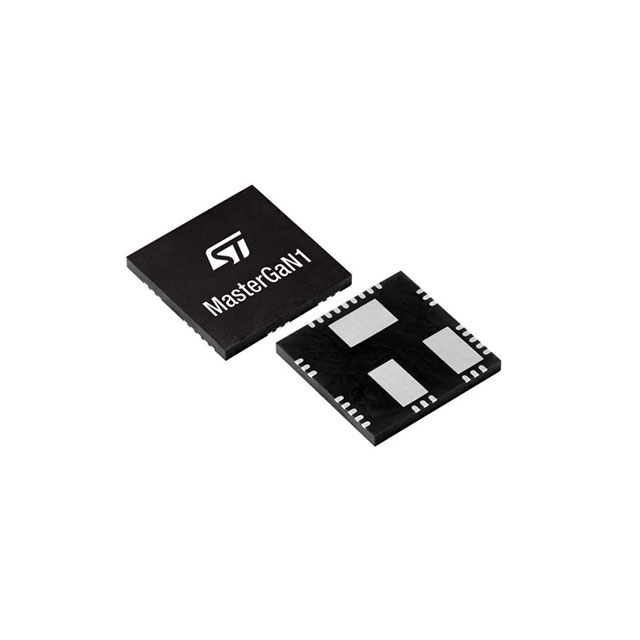

| Package / Case | 31-VQFN Exposed Pad |
| Supplier Device Package | 31-QFN (9x9) |
| Voltage - Supply [Max] | 9.5 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MASTERGAN1 Series
The MASTERGAN1 is an advanced power system-in-package integrating a gate driver and two enhancement mode GaN transistors in half‑bridge configuration.
The integrated power GaNs have RDS(ON)of 150 mΩ and 650 V drain‑source breakdown voltage, while the high side of the embedded gate driver can be easily supplied by the integrated bootstrap diode.
The MASTERGAN1 features UVLO protection on both the lower and upper driving sections, preventing the power switches from operating in low efficiency or dangerous conditions, and the interlocking function avoids cross-conduction conditions.
