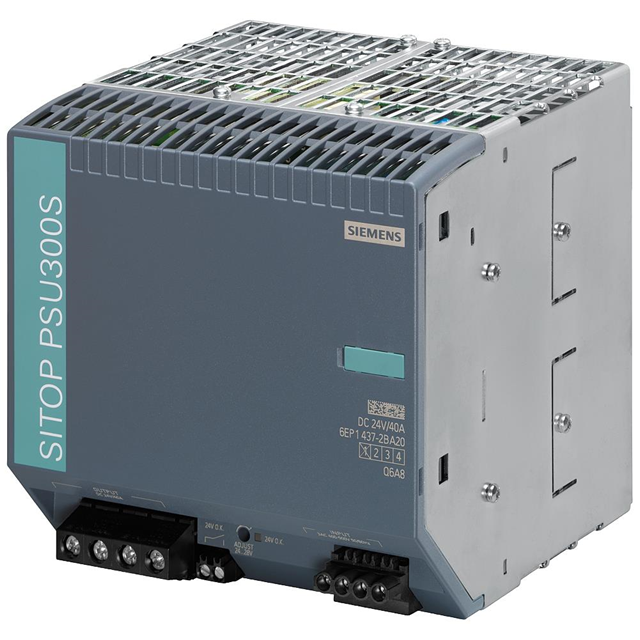

6EP14372BA20

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 960W

Search across all available documentation for this part.

Active

Siemens

AC/DC DIN RAIL SUPPLY 24V 960W

Technical Specifications

Parameters and characteristics for this part

Specification	6EP14372BA20

AC Voltage - Input [Max]	500 VAC
AC Voltage - Input [Min]	400 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	CSA, cCSAus, cULus, UL, cUL, CB, CE
Current - Output (Max) [Max]	40 A
Efficiency	91.5 %
Features	Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	960 W
Size / Dimension [x]	125 mm
Size / Dimension [x]	4.92 in
Size / Dimension [y]	3.54 in
Size / Dimension [y]	90 mm
Size / Dimension [z]	4.92 in
Size / Dimension [z]	125 mm
Standard Number	60950-1, UL 508
Voltage - Output 1	24 V

Part	Power (Watts)	Features	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Efficiency	Applications	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Number of Outputs	Approval Agency	Input Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Output (Max) [Max]
Siemens 6EP14372BA20	960 W	Adjustable Output IP20	60950-1 UL 508	-25 °C	70 °C	24 V	91.5 %	Hazardous Locations Industrial ITE (Commercial)	500 VAC	400 VAC	1	CB cCSAus CE CSA cUL cULus UL	AC	4.92 in	125 mm	3.54 in	90 mm	125 mm	4.92 in	40 A
