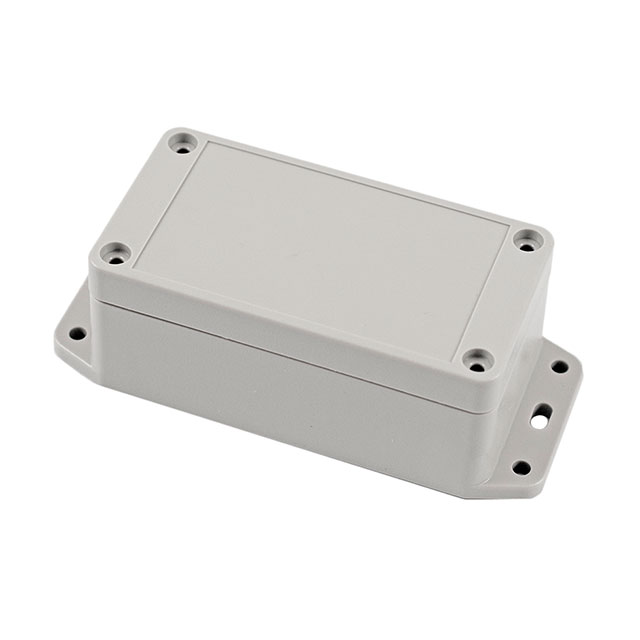

RP1030BF

Active

Hammond Manufacturing

BOX ABS WHT 4.72"L X 2.03"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ABS WHT 4.72"L X 2.03"W

Technical Specifications

Parameters and characteristics for this part

Specification	RP1030BF

Area (L x W)	9.58 in˛
Area (L x W)	61.8 cm˛
Color	Off, White
Container Type	Box
Design	Cover Included
Material	ABS
Material Flammability Rating	UL94 V-2
Size / Dimension [x]	4.72 in
Size / Dimension [x]	119.89 mm
Size / Dimension [y]	2.03 in
Size / Dimension [y]	51.56 mm
Thickness	2.03 mm
Thickness	0.08 "

Part	Material	Thickness	Thickness	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Container Type	Material Flammability Rating	Color	Area (L x W)	Area (L x W)
Hammond Manufacturing RP1030C	ABS	2.03 mm	0.08 "	Cover Included	95 mm	1.97 "	3.74 "	50.04 mm	Box	UL94 V-2	Clear Cover/Door Off White	47.5 cm˛	7.36 in˛
Hammond Manufacturing RP1030BFC	ABS	2.03 mm	0.08 "	Cover Included	119.89 mm	2.03 in	4.72 in	51.56 mm	Box	UL94 HB	Clear Cover/Door Off White	61.8 cm˛	9.58 in˛
Hammond Manufacturing RP1030BF	ABS	2.03 mm	0.08 "	Cover Included	119.89 mm	2.03 in	4.72 in	51.56 mm	Box	UL94 V-2	Off White	61.8 cm˛	9.58 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box ABS White, Off Cover Included 4.720" L x 2.030" W (119.89mm x 51.56mm) X 1.570" (39.88mm)
