Connectors, Interconnects

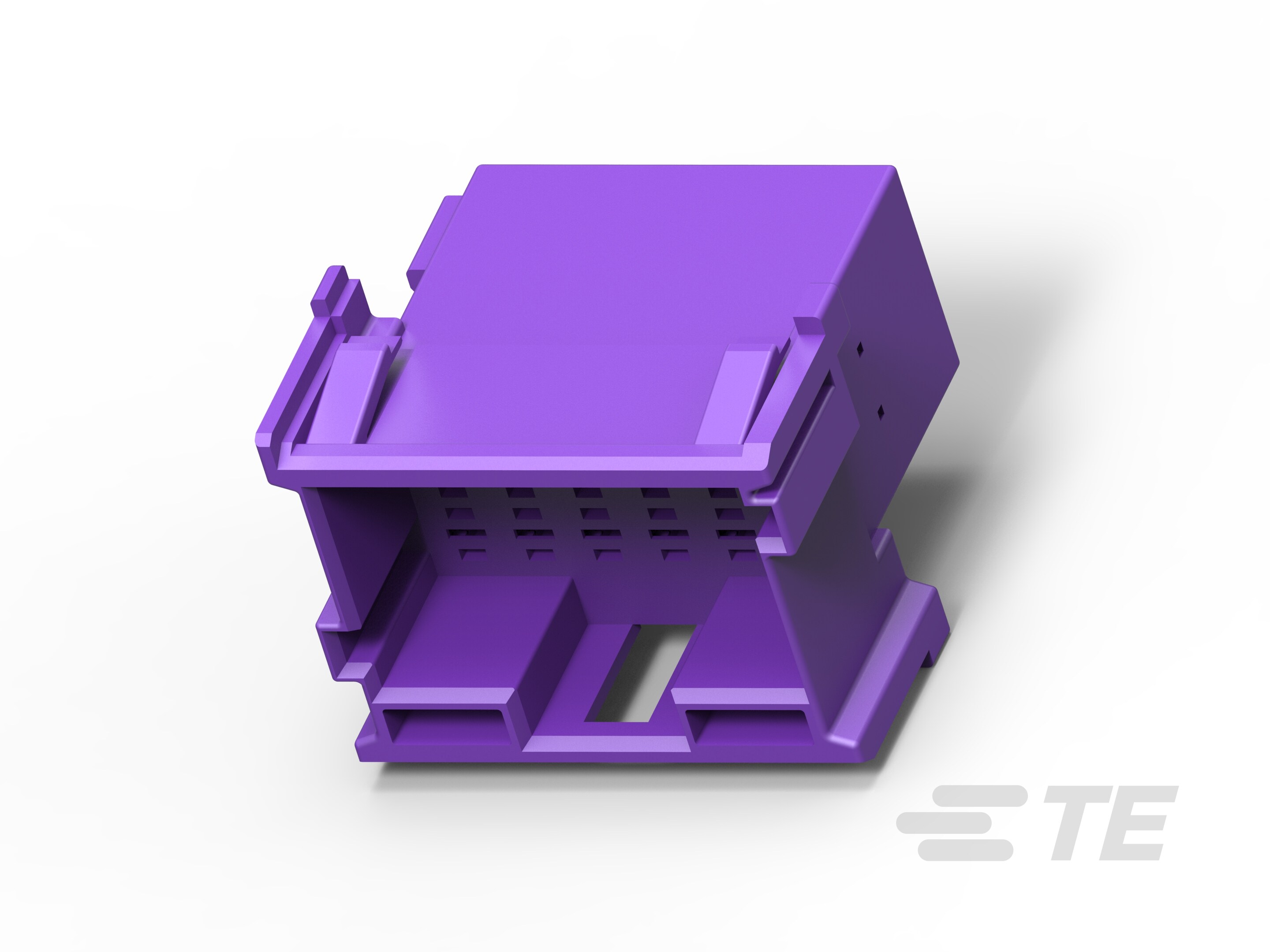

1-967629-2

Active

TE Connectivity Raychem Cable Protection

FLA-STE-GEH2,8 18P

Search across all available documentation for this part.

Connectors, Interconnects

Active

TE Connectivity Raychem Cable Protection

FLA-STE-GEH2,8 18P

Technical Specifications

Parameters and characteristics for this part

Specification	1-967629-2

Color	Purple
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Number of Rows	3
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing	0.217 in
Row Spacing	5.5 mm

Part	Connector Type	Number of Rows	Pitch [x]	Pitch [x]	Insulation Material	Row Spacing	Row Spacing	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Contact Termination	Contact Type	Mounting Type
TE Connectivity Raychem Cable Protection 2-967629-1	Plug	3	5 mm	0.197 in	Polyamide (PA66) Nylon 6/6 Glass Filled	0.217 in	5.5 mm	Latch Holder	-40 °C	120 °C	Natural	18	Crimp	Tab
TE Connectivity Raychem Cable Protection 1-967629-2	Plug	3	5 mm	0.197 in	Polyamide (PA66) Nylon 6/6 Glass Filled	0.217 in	5.5 mm		-40 °C	120 °C	Purple	18	Crimp	Tab	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 Rectangular Connectors - Housings Plug Purple 0.197" (5.00mm)
