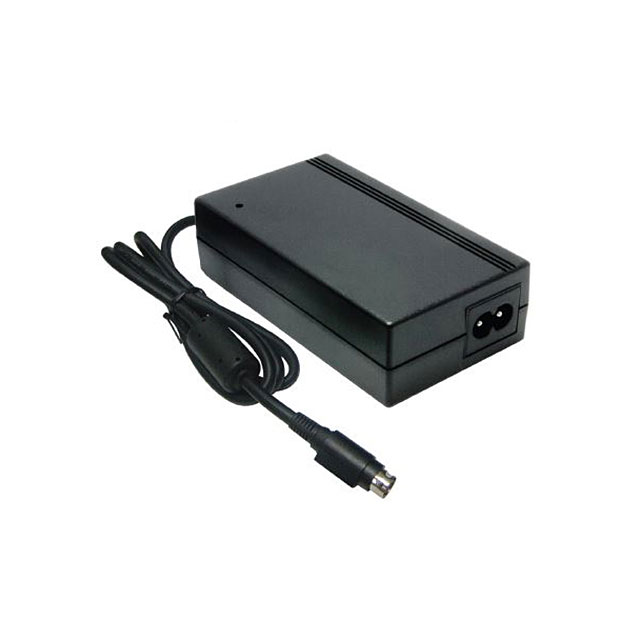

DTM65PW150C8 - DTM65-C8

DTM65PW150C8

Active
TDK-LAMBDA

AC/DC POWER SUPPLY, 1 OUTPUT, 60 W, 15 V, 4 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetUser Manual EN+2
DTM65PW150C8 - DTM65-C8

DTM65PW150C8

Active
TDK-LAMBDA

AC/DC POWER SUPPLY, 1 OUTPUT, 60 W, 15 V, 4 A

Deep-Dive with AI

DocumentsDatasheetUser Manual EN+2

Technical Specifications

Parameters and characteristics for this part

SpecificationDTM65PW150C8
ApplicationsMedical
Approval AgencyCE
Cord Length1.05 m
Cord Length41.34 in
Current - Output (Max) [Max]4 A
EfficiencyLevel VI
FormDesktop (Class II)
Input ConnectorIEC 320-C8
Input TypeCord
No Load Power Consumption210 mW
Operating Temperature [Max]60 °C
Operating Temperature [Min]0 °C
Output Connector4 Pin
Output ConnectorPower DIN
Power (Watts)60 W
Region UtilizedInternational
Size / Dimension [x]4.17 in
Size / Dimension [x]106 mm
Size / Dimension [y]2.36 "
Size / Dimension [y]60 mm
Size / Dimension [z]1.22 in
Size / Dimension [z]31 mm
Voltage - Input [Max]264 VAC
Voltage - Input [Min]90 VAC
Voltage - Output15 VDC
Weight453.59 g
Weight1 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 86.40
10$ 70.90
25$ 70.21
NewarkEach 1$ 86.40
10$ 70.90

Description

General part information

DTM65PW150 Series

15V 60 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
