EM-SGL-PG9-MET-C

Active

TE Connectivity Raychem Cable Protection

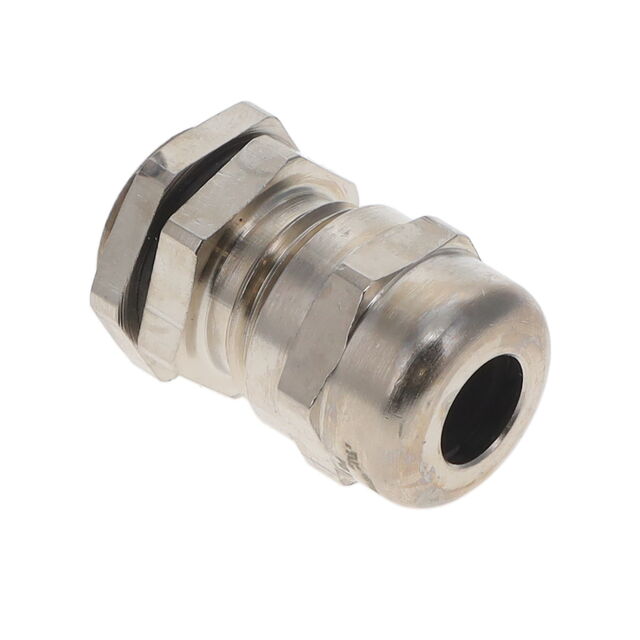

CABLE GLAND 4-8MM PG9 BRASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CABLE GLAND 4-8MM PG9 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-PG9-MET-C

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	8 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.315 in
Outside Cable Diameter (Min) [Min]	0.157 in
Outside Cable Diameter (Min) [Min]	4 mm
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG9
Type	Cable Gland

Part	Thread Length	Thread Length	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Includes	Material
TE Connectivity Raychem Cable Protection EM-SGL-PG9-MET-C	0.236 in	6 mm	Cable Gland	100 °C	-20 C	Silver	0.157 in	4 mm	PG9	8 mm	0.315 in	IP68 - Dust Tight Waterproof	Locknut Seal	Brass Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG9 Silver
