031-71047

Active

AMPHENOL RF

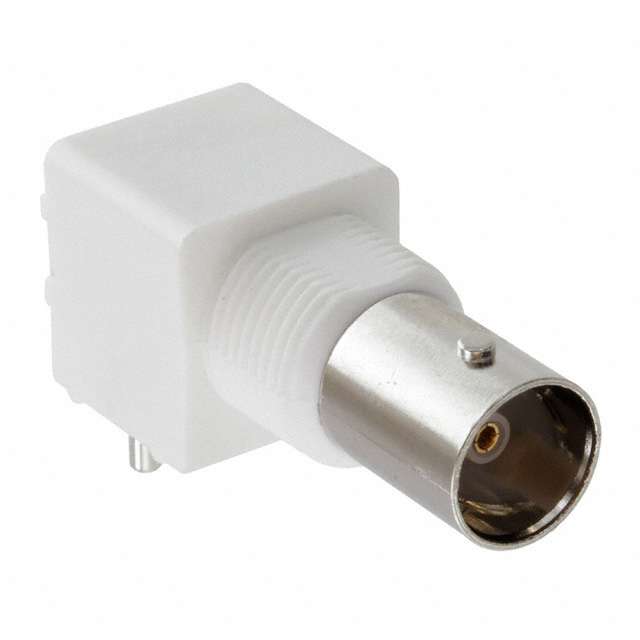

CONN BNC JACK R/A 75 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

031-71047

Active

AMPHENOL RF

CONN BNC JACK R/A 75 OHM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-71047	031-71 Series

Body Finish	Nickel	Nickel
Body Material	Zinc Die Cast	Zinc Die Cast, Brass
Cable Group	-	1694A, Belden 1694, 9248, RG-6, 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B, 140, 8263, 59B, 8279, 210, Belden 8241, RG-59, 62, 9209, RG-59 Plenum, 82108, 9104, Belden 1506, 9290, 6A, Belden 1152A, 89248, 212, 54, 143, RG-6DS
Center Contact Material	Phosphor Bronze	Phosphor Bronze, Brass
Center Contact Plating	Gold	Gold
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack, Male Pin, Plug
Contact Termination	Solder	Solder, Crimp
Dielectric Material	Polypropylene (PP)	Polypropylene (PP), Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Isolated, Board Guide	Isolated, Board Guide, Board Lock
Frequency - Max [Max]	1 GHz	1 - 4 GHz
Housing Color	White, Silver	Silver, White, Black
Impedance	75 Ohms	75 Ohms
Includes	-	1 Ferrule, 1 Contact, 1 Connector, 1 Sleeve, 1 Gasket, 1 Nut, 1 Lockwasher, 1 Insulator
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	85 °C	80 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -40 °C
Shield Termination	Solder	Solder, Crimp, Clamp
Voltage Rating	500 V	500 V

031-71 Series

CONN BNC JACK STR 75 OHM PCB

Part	Frequency - Max [Max]	Housing Color	Fastening Type	Voltage Rating	Contact Termination	Mounting Feature	Number of Ports	Impedance	Body Material	Dielectric Material	Connector Style	Insertion Loss	Center Contact Plating	Connector Type	Shield Termination	Body Finish	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Mating Cycles	Includes	Cable Group	Features
AMPHENOL RF 031-71045-1010	1 GHz	Silver	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Through Hole	500
AMPHENOL RF 031-71000-RFX	2 GHz	Silver	Bayonet Lock	500 V	Crimp		1	75 Ohms	Brass	Polyoxymethylene (POM) Acetal	BNC	0.2 dB	Gold	Male Pin, Plug	Crimp	Nickel	Brass	85 °C	-40 °C	Free Hanging (In-Line)	500	1 Connector, 1 Contact, 1 Ferrule	1694A, 9248, Belden 1694, RG-6
AMPHENOL RF 031-71014-RFX		Silver	Bayonet Lock	500 V	Solder		1	75 Ohms	Brass	Polyoxymethylene (POM) Acetal	BNC	0.2 dB	Gold	Female Socket, Jack	Crimp	Nickel	Phosphor Bronze	80 C	-40 °C	Free Hanging (In-Line)	500	1 Connector, 1 Contact, 1 Ferrule, 1 Sleeve	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179
AMPHENOL RF 031-71047	1 GHz	Silver, White	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Right Angle, Through Hole	500			Board Guide, Isolated
AMPHENOL RF 031-71046	1 GHz	Black, Silver	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Right Angle, Through Hole	500			Board Guide, Isolated
AMPHENOL RF 031-71045	1 GHz	Silver	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Through Hole	500			Board Guide
AMPHENOL RF 031-71053-1010	1 GHz	Black, Silver	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Right Angle, Through Hole	500			Board Lock, Isolated
AMPHENOL RF 031-71058	1 GHz	Silver, White	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Through Hole	500			Board Guide, Isolated
AMPHENOL RF 031-71053	1 GHz	Black, Silver	Bayonet Lock	500 V	Solder	Bulkhead - Front Side Nut	1	75 Ohms	Zinc Die Cast	Polypropylene (PP)	BNC	0.2 dB	Gold	Female Socket, Jack	Solder	Nickel	Phosphor Bronze	85 °C	-55 °C	Panel Mount, Right Angle, Through Hole	500			Board Guide, Isolated
AMPHENOL RF 031-71016-RFX	4 GHz	Silver	Bayonet Lock	500 V	Crimp	Bulkhead - Front Side Nut	1	75 Ohms	Brass	Polyoxymethylene (POM) Acetal	BNC	0.2 dB	Gold	Female Socket, Jack	Crimp	Nickel	Phosphor Bronze				500	1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Insulator, 1 Lockwasher, 1 Nut	179A, 179B, 187, 187A, Belden 9221, M17/94-RG179, RG-179

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.88

Description

General part information

031-71 Series

BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
