FF225R65T3E3BPSA1

Active

Infineon Technologies

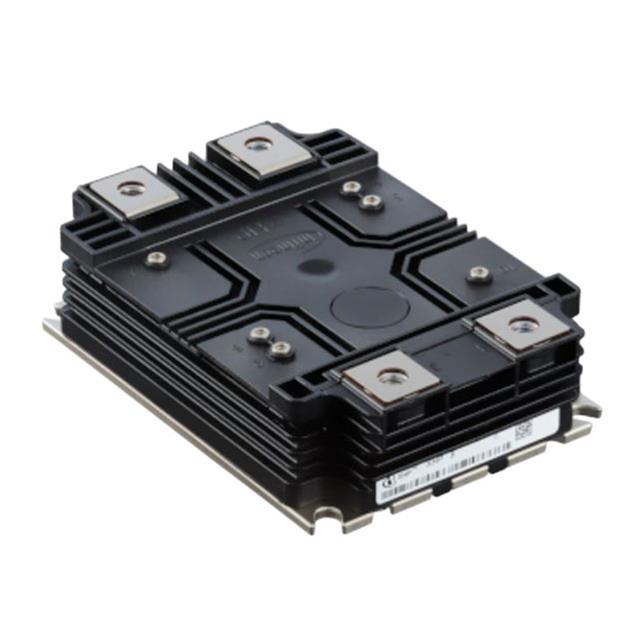

THE FF225R65T3E3 IS A DUAL IGBT3 - E3 MODULE IN A XHP™ 3 HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 6500 V AND 225 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FF225R65T3E3 IS A DUAL IGBT3 - E3 MODULE IN A XHP™ 3 HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 6500 V AND 225 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FF225R65T3E3BPSA1

Configuration	2 Independent
Current - Collector (Ic) (Max) [Max]	225 A
Current - Collector Cutoff (Max) [Max]	5 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	65.6 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature	125 ¯C
Package / Case	Module
Power - Max [Max]	1000000 W
Supplier Device Package	AG-XHP3K65
Voltage - Collector Emitter Breakdown (Max) [Max]	5900 V

Part	Power - Max [Max]	Mounting Type	Input Capacitance (Cies) @ Vce	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Input	Configuration	IGBT Type	Supplier Device Package	NTC Thermistor	Operating Temperature
Infineon Technologies FF225R65T3E3BPSA1	1000000 W	Chassis Mount	65.6 nF	225 A	5 mA	5900 V	Module	Standard	2 Independent	Trench Field Stop	AG-XHP3K65		125 ¯C
Infineon Technologies FF225R65T3E3P3BPMA1	1000 W	Chassis Mount	65.6 nF	225 A	5 mA	5900 V	Module	Standard	2 Independent	Trench Field Stop	AG-XHP3K65		125 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1632.83
Newark	Each	1	$ 1654.85

General part information

XHP™3 6500 V, 225 A dualIGBT modulewith Trench/Fieldstopp IGBT3 and Emitter Controlled 3 diode.
