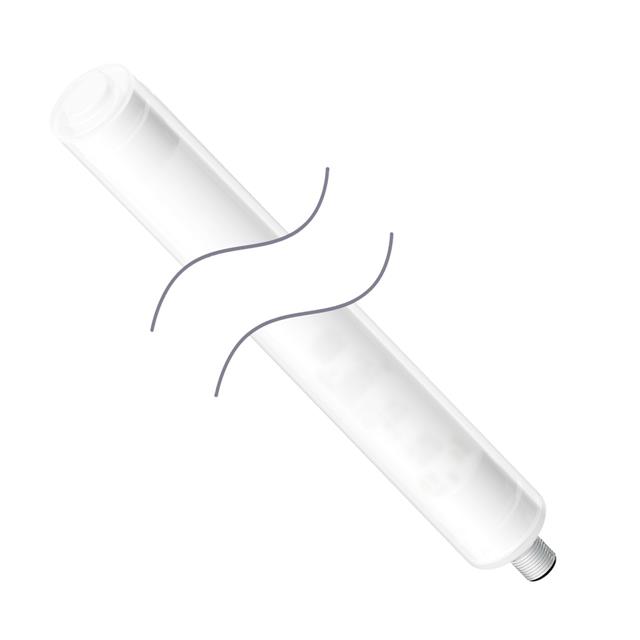

WLS27XWGRYB5-0850DS24Q

Active

BANNER ENGINEERING

MULTICOLOR LIGHT STRIP 850MM

Search across all available documentation for this part.

Active

BANNER ENGINEERING

MULTICOLOR LIGHT STRIP 850MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 568.00
Newark	Each	1	$ 568.00

General part information

MULTICOLOR LIGHT STRIP 850MM

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED STRIP LIGHT, NON-CASCADABLE, DIFFUSED, 285MM, WHITE, GREEN, RED, YELLOW, BLUE, 24V, WLS27 SERIES

Part	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Approval Agency	Lens Type	Ingress Protection	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Profile (W x H) [diameter]	Profile (W x H) [diameter]	Luminous Flux [custom]	Luminous Flux [custom]	Luminous Flux [custom]	Luminous Flux [custom]	Luminous Flux [custom]	Illumination Color	Length [x]	Length [x]	Length	Length
BANNER ENGINEERING WLS27XWGRYB5-0285DS24Q	Connector (M12)	12 V	30 VDC	CE, cULus	Diffused, Tubular	IP66, IP67, IP69K	Aluminum (Al)	-40 °C	70 °C	1.06 in	27 mm	125 lm	570 lm	650 lm	185 lm	400 lm	Blue, Green, Red, White, Yellow
BANNER ENGINEERING WLS27XWGRYB5-0850DS24Q	Connector (M12)	12 V	30 VDC	CE, cULus	Diffused, Tubular	IP66, IP67, IP69K	Aluminum (Al)	-40 °C	70 °C	1.06 in	27 mm	470 lm	1710 lm	1950 lm	555 lm	1200 lm	Blue, Green, Red, White, Yellow
BANNER ENGINEERING WLS27XWGRYB5-1130DS24Q	Connector (M12)	12 V	30 VDC	CE, cULus	Diffused, Tubular	IP66, IP67, IP69K	Aluminum (Al)	-40 °C	70 °C	1.06 in	27 mm	500 lm	2280 lm	2600 lm	740 lm	16000 lm	Blue, Green, Red, White, Yellow	44.49 in	1130 mm
BANNER ENGINEERING WLS27XWGRYB5-0570DS24Q	Connector (M12)	12 V	30 VDC	CE, cULus	Diffused, Tubular	IP66, IP67, IP69K	Aluminum (Al)	-40 °C	70 °C	1.06 in	27 mm	250 lm	1140 lm	1300 lm	370 lm	800 lm	Blue, Green, Red, White, Yellow			570 mm	22.44 in
