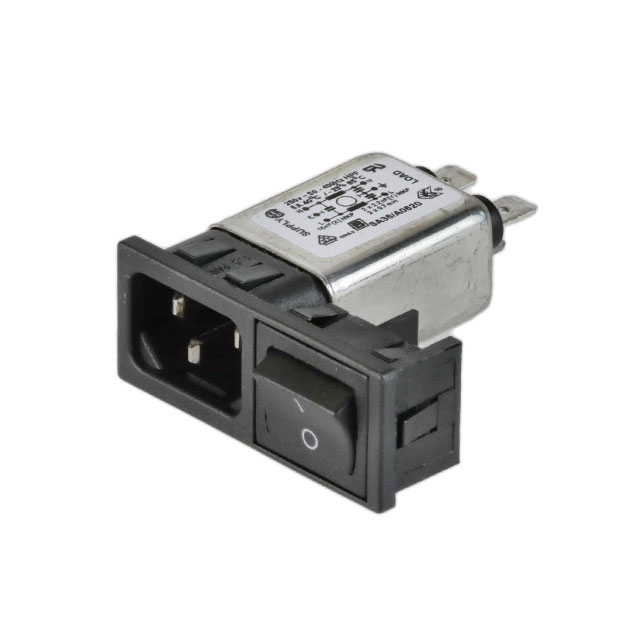

BZM27/A0620/57B

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BZM27/A0620/57B	BZM27/A Series

Accomodates a Fuse	False	False
Approval Agency	VDE, CSA, UL, ENEC	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A	10 A
Current Rating - Filter	6 A	6 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions	-	21.3 mm
Panel Cutout Dimensions	-	45.9 mm
Panel Thickness [custom]	0.059 in	0.059 in
Panel Thickness [custom]	1.5 mm	1.5 mm
Switch Features	Switch On-Off	Switch On-Off
Termination	0.189 ", 4.8 mm	0.189 - 6.3 mm
Termination	Quick Connect	Quick Connect
Termination	-	0.25 in
Voltage Rating - Appliance Inlet	250 VAC	250 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Switch Features	Connector Style	Panel Thickness [custom]	Panel Thickness [custom]	Termination	Termination	Termination	Current Rating - Filter	Voltage Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Material Flammability Rating	Accomodates a Fuse	Connector Type	Current Rating - Appliance Inlet	Filter Type	Mounting Type
BULGIN LIMITED BZM27/A0620/53B	Switch On-Off	IEC 320-C14	0.059 in	1.5 mm	0.25 in	6.3 mm	Quick Connect	6 A	250 VAC	CSA, ENEC, UL, VDE	21.3 mm	45.9 mm	UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	Panel Mount, Snap-In
BULGIN LIMITED BZM27/A0620/57B	Switch On-Off	IEC 320-C14	0.059 in	1.5 mm		0.189 ", 4.8 mm	Quick Connect	6 A	250 VAC	CSA, ENEC, UL, VDE			UL94 V-0		Receptacle, Male Blades - Module	10 A	Filtered (EMI, RFI) - Commercial	Panel Mount, Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
