60752-2
ActiveTE Connectivity AMP Connectors
AMVAR RING IS 2/17-2/158TPBR ROHS COMPLIANT: YES
60752-2
ActiveTE Connectivity AMP Connectors
AMVAR RING IS 2/17-2/158TPBR ROHS COMPLIANT: YES
Description
General part information
60752 Series

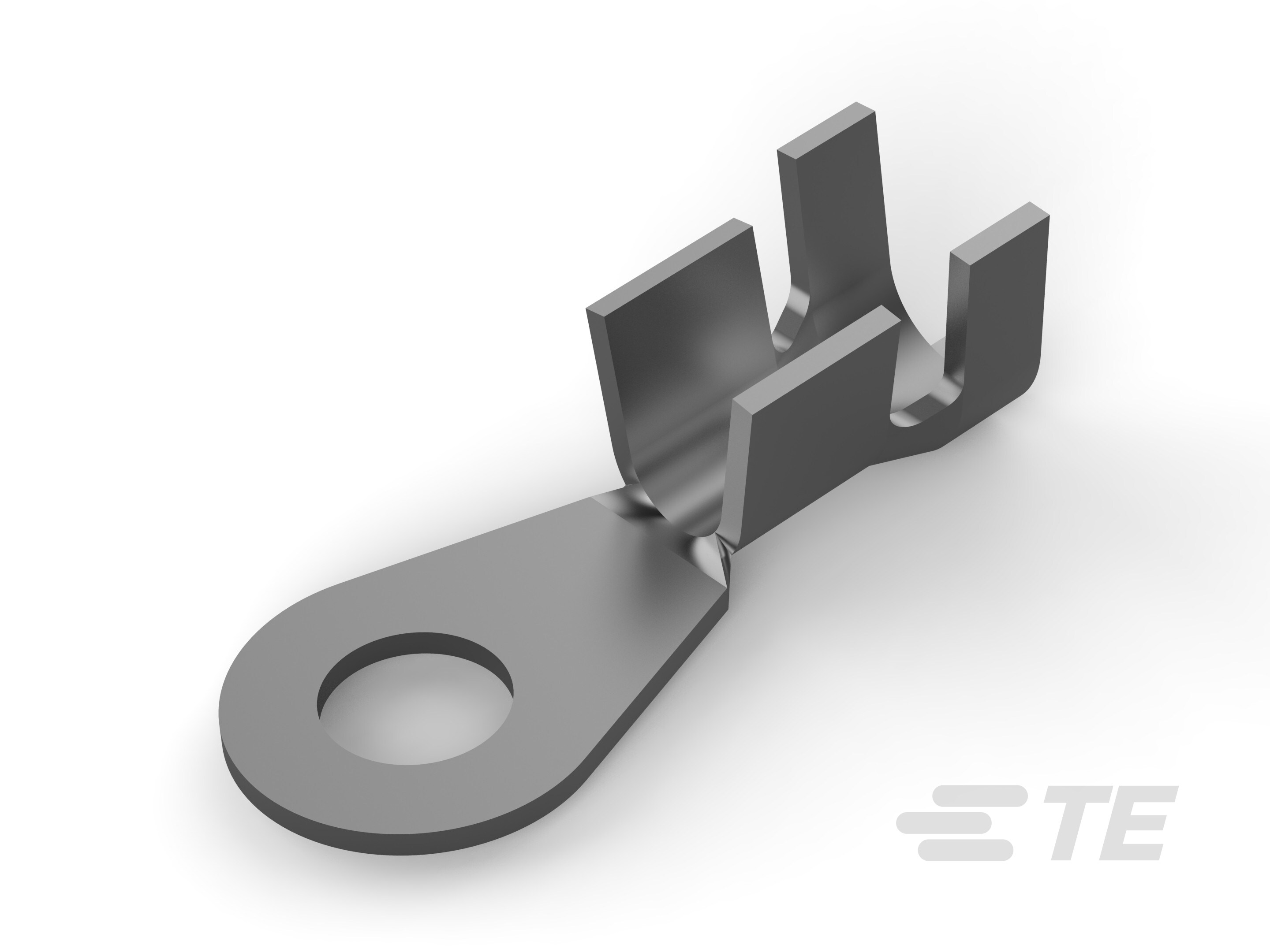

Closed Ring Tongue Terminal, 17 – 15 AWG, #8 / M4 Stud, 4.17 mm [.164 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 60752-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Features | Serrated Termination |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.19 in |
| Insulation Diameter (Min) | 0.115 in |
| Length - Overall | 0.827 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.025 in |
| Width - Outer Edges | 0.342 in |
| Wire Gauge | 17 AWG, 15 AWG |
