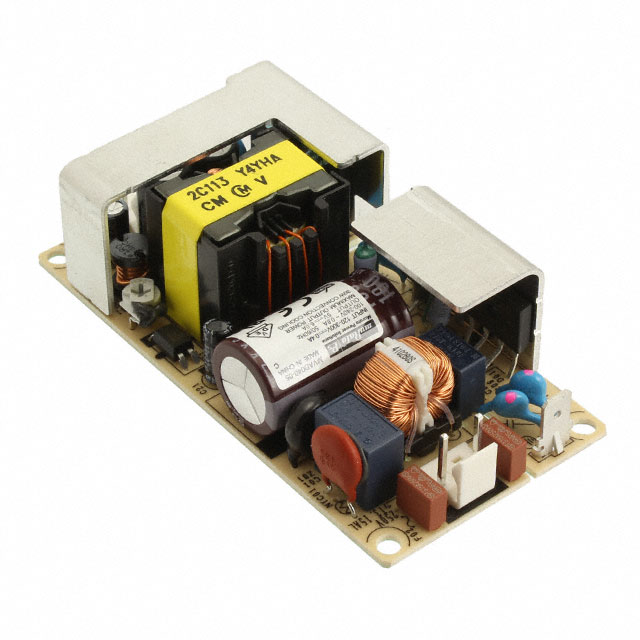

MVAD040-05

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 5V 40W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC CONVERTER 5V 40W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 5V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MVAD040-05	MVAD040 Series

	-	-
Applications	ITE (Commercial)	ITE (Commercial), Medical
Approval Agency	CB, CE, cURus, VDE	CB, CE, cURus, VDE
Current - Output 1	6 A	6 - 840 mA
Efficiency	80 %	80 - 89 %
Features	Universal Input, DC Input Capable	Universal Input, DC Input Capable
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	40 W	40 W
Size / Dimension	-	50.8 mm
Size / Dimension	-	30.1 mm
Size / Dimension [x]	101.6 mm	101.6 mm
Size / Dimension [x]	4 in	4 in
Size / Dimension [y]	2 in	2 in
Size / Dimension [y]	50.8 mm	50.8 mm
Size / Dimension [z]	1.3 "	1.18 - 1.3 in
Size / Dimension [z]	33 mm	33 mm
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	3000 - 4000 V
Voltage - Output 1	5 V	5 - 48 V

AC/DC CONVERTER 48V 40W

Part	Type	Voltage - Isolation	Current - Output 1	Approval Agency	Efficiency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Applications	Voltage - Output 1	Features	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]
Murata Power Solutions Inc. MVAD040-48	Open Frame	3000 V	840 mA	CB, CE, cURus, VDE	89 %	Chassis Mount	-20 °C	70 °C	40 W	ITE (Commercial), Medical	48 V	DC Input Capable, Universal Input	1	90 VAC	264 VAC	1.18 in	50.8 mm	2 in	30.1 mm	101.6 mm	4 in
Murata Power Solutions Inc. MVAD040-05	Open Frame	4000 V	6 A	CB, CE, cURus, VDE	80 %	Chassis Mount	-20 °C	70 °C	40 W	ITE (Commercial)	5 V	DC Input Capable, Universal Input	1	90 VAC	264 VAC	1.3 "		2 in		101.6 mm	4 in	50.8 mm	33 mm
Murata Power Solutions Inc. MVAD040-28
