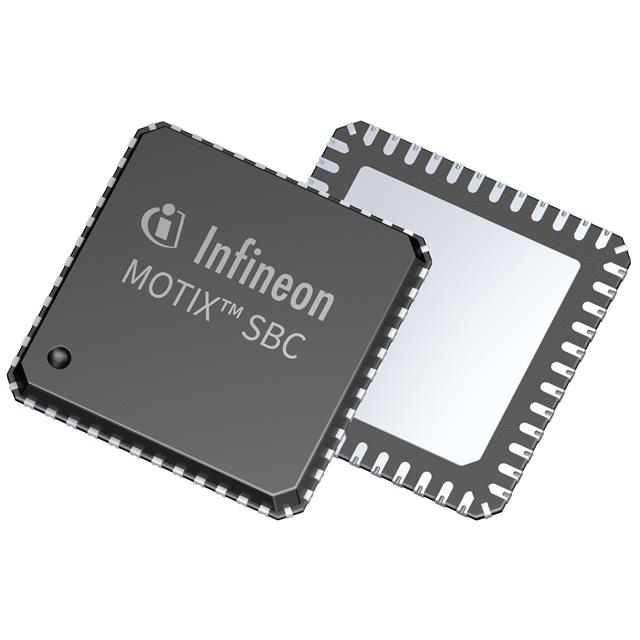

TLE95633QXXUMA1
ActiveInfineon Technologies
MOTOR DRIVER, -40 TO 150DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
TLE95633QXXUMA1
ActiveInfineon Technologies
MOTOR DRIVER, -40 TO 150DEG C ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE95633QXXUMA1 |
|---|---|
| Current - Output | 250 mA |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Grade | Automotive |
| Interface | SPI, CAN |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Package / Case | 48-VFQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | PG-VQFN-48-31 |
| Technology | NMOS |
| Voltage - Load [Max] | 28 V |
| Voltage - Load [Min] | 6 V |
| Voltage - Supply [Max] | 28 V |
| Voltage - Supply [Min] | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.62 | |
| 10 | $ 3.25 | |||
| 25 | $ 3.07 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.40 | |||
| Digi-Reel® | 1 | $ 3.62 | ||
| 10 | $ 3.25 | |||
| 25 | $ 3.07 | |||
| 100 | $ 2.66 | |||
| 250 | $ 2.53 | |||
| 500 | $ 2.40 | |||
| Tape & Reel (TR) | 2500 | $ 2.40 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 4.10 | |
| 10 | $ 3.18 | |||
| 25 | $ 2.95 | |||
| 50 | $ 2.83 | |||
| 100 | $ 2.70 | |||
| 250 | $ 2.58 | |||
| 500 | $ 2.50 | |||
| 1000 | $ 2.41 | |||
Description
General part information
TLE95633 Series
Motor Driver NMOS CAN, SPI PG-VQFN-48-31
