AM150HB-11024SA30JZ-B

Active

aimtec

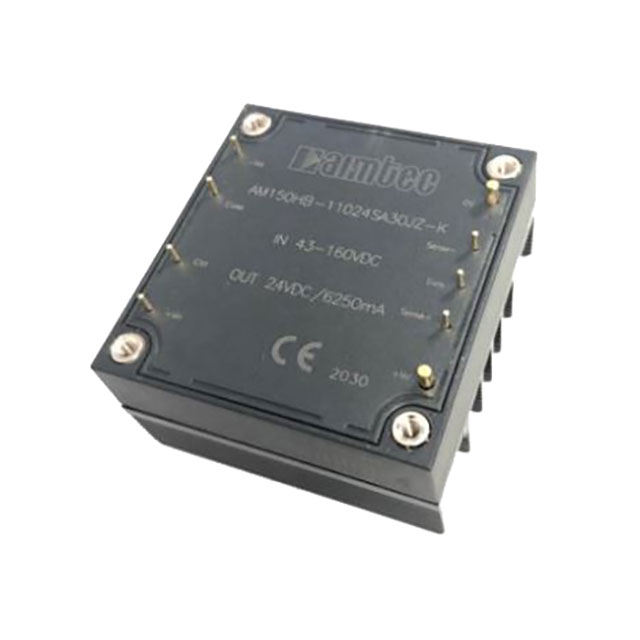

DC DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

aimtec

DC DC CONVERTER 24V 150W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 24V 6.25A 43V - 160V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AM150HB-11024SA30JZ-B	AM150HB Series

Applications	Railway	Industrial, Railway
Current - Output (Max) [Max]	6.25 A	3.12 - 24 A
Efficiency	91 %	88 - 91 %
Features	Remote On/Off, Adjustable Output	Remote Sense, Heatsink, Remote On/Off, Adjustable Output
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Half Brick	Half Brick
Power (Watts)	150 W	120 - 150 W
Size / Dimension [x]	2.4 in	2.4 - 2.44 in
Size / Dimension [x]	61 mm	61 - 62 mm
Size / Dimension [y]	57.9 mm	57.9 - 58 mm
Size / Dimension [y]	2.28 in	2 - 2.28 in
Size / Dimension [z]	13.8 mm	13.8 - 31.8 mm
Size / Dimension [z]	0.54 in	0.54 - 1.25 "
Standard Number	50155	50155
Supplier Device Package	Half Brick	Half Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	160 V	160 V
Voltage - Input (Min) [Min]	43 V	43 V
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	24 V	5 - 48 V

DC DC CONVERTER 48V 150W

Part	Number of Outputs	Applications	Current - Output (Max) [Max]	Features	Voltage - Output 1	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Efficiency	Voltage - Isolation	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Voltage - Input (Max) [Max]	Standard Number
aimtec AM150HB-11048SA30JZ-K-B	1	Industrial, Railway	3.12 A	Adjustable Output, Heatsink, Remote On/Off, Remote Sense	48 V	Half Brick	-40 °C	105 ░C	Isolated Module	31.8 mm	62 mm	58 mm	2.44 in	1.25 "	2 in	Half Brick	88 %	3000 V	43 V	150 W	Through Hole	160 V
aimtec AM150HB-11015SA30JZ-B	1	Railway	10 A	Adjustable Output, Remote On/Off	15 V	Half Brick	-40 °C	105 ░C	Isolated Module	13.8 mm	61 mm	57.9 mm	2.4 in	0.54 in	2.28 in	Half Brick	89 %	3000 V	43 V	150 W	Through Hole	160 V	50155
aimtec AM150HB-11005SA30JZ-B	1	Railway	24 A	Adjustable Output, Remote On/Off	5 V	Half Brick	-40 °C	105 ░C	Isolated Module	13.8 mm	61 mm	57.9 mm	2.4 in	0.54 in	2.28 in	Half Brick	88 %	3000 V	43 V	120 W	Through Hole	160 V	50155
aimtec AM150HB-11024SA30JZ-B	1	Railway	6.25 A	Adjustable Output, Remote On/Off	24 V	Half Brick	-40 °C	105 ░C	Isolated Module	13.8 mm	61 mm	57.9 mm	2.4 in	0.54 in	2.28 in	Half Brick	91 %	3000 V	43 V	150 W	Through Hole	160 V	50155
