TFA9882UK/N2Z

Obsolete

NXP USA Inc.

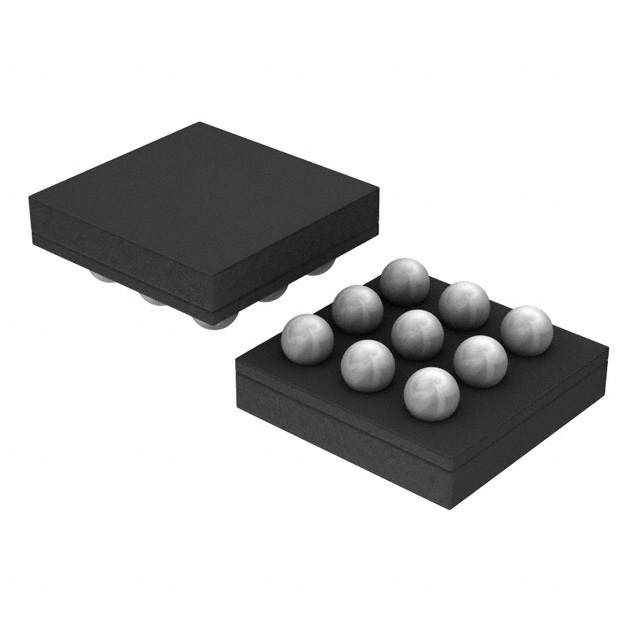

IC AMP CLASS D MONO 3.4W 9WLCSP

Search across all available documentation for this part.

Obsolete

NXP USA Inc.

IC AMP CLASS D MONO 3.4W 9WLCSP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 9-WLCSP (1.5x1.28)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TFA9882UK/N2Z	TFA988 Series

Features	Mute, Overvoltage, Undervoltage, Short-Circuit, Depop, Thermal Protection, I2S	Mute, Overvoltage, Undervoltage, Short-Circuit, Depop, Thermal Protection, I2S, Short Circuit
Max Output Power x Channels @ Load	3.4 W	2.65 - 4 W
Max Output Power x Channels @ Load [custom]	4 Ohm	4 Ohm
Max Output Power x Channels @ Load [custom]	1	1
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	1-Channel (Mono)	1-Channel (Mono)
Package / Case	9-UFBGA, WLCSP	9-UFBGA, WLCSP, 29-UFBGA
Supplier Device Package	9-WLCSP (1.5x1.28)	9-WLCSP, 29-WLCSP, 9-WLCSP (1.3x1.3), 9-WLCSP (1.5x1.28)
Supplier Device Package	-	1.27 - 2.07
Supplier Device Package	-	1.49 - 3.19
Type	Class D	Class D
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	2.5 V	2.5 V

IC AMP CLASS D MONO 3.4W 9WLCSP

Part	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Mounting Type	Package / Case	Features	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load [custom]	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]
NXP USA Inc. TFA9882UK/N1,023	1-Channel (Mono)	85 °C	-40 °C	2.5 V	5.5 V	Class D	Surface Mount	9-UFBGA, WLCSP	Depop, I2S, Mute, Overvoltage, Short-Circuit, Thermal Protection, Undervoltage	3.4 W	4 Ohm	1	9-WLCSP	1.27	1.49
NXP USA Inc. TFA9887UK/N2AZ	1-Channel (Mono)	85 °C	-40 °C	2.5 V	5.5 V	Class D	Surface Mount	29-UFBGA, WLCSP	Depop, Short-Circuit, Thermal Protection	2.65 W, 4 Ohm		1	29-WLCSP	2.07	3.19
NXP USA Inc. TFA9881UK/N1,118	1-Channel (Mono)			2.5 V	5.5 V	Class D	Surface Mount	9-UFBGA, WLCSP	Depop, Overvoltage, Short Circuit, Thermal Protection	3.4 W	4 Ohm	1	9-WLCSP (1.3x1.3)
NXP USA Inc. TFA9882UK/N2Z	1-Channel (Mono)			2.5 V	5.5 V	Class D	Surface Mount	9-UFBGA, WLCSP	Depop, I2S, Mute, Overvoltage, Short-Circuit, Thermal Protection, Undervoltage	3.4 W	4 Ohm	1	9-WLCSP (1.5x1.28)
NXP USA Inc. TFA9887UK/N2BZ	1-Channel (Mono)	85 °C	-40 °C	2.5 V	5.5 V	Class D	Surface Mount	29-UFBGA, WLCSP	Depop, Short-Circuit, Thermal Protection	2.65 W, 4 Ohm		1	29-WLCSP	2.07	3.19
