A1DXH-4036G

Active

TE Connectivity AMP Connectors

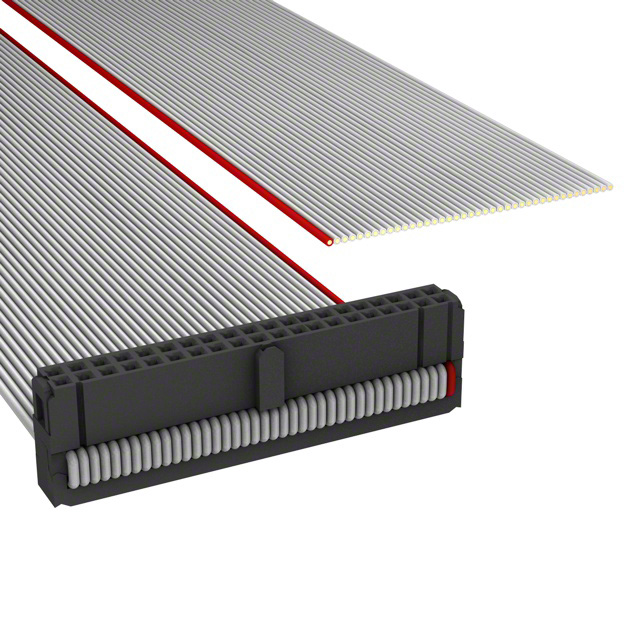

IDC CABLE - AKR40H/AE40G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A1DXH-4036G

Active

TE Connectivity AMP Connectors

IDC CABLE - AKR40H/AE40G/X

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A1DXH-4036G	A1DXH Series

Cable Termination	IDC	IDC
Color	-	Ribbon, Multiple
Connector Type	Socket to Cable	Socket to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Features	Polarizing Key, Strain Relief	Polarizing Key, Strain Relief
Length [x]	3 ft	3 ft
Length [x]	914.4 mm	914.4 mm
Number of Positions	40	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.83
		10	$ 8.97
		25	$ 8.33
		50	$ 7.87
		100	$ 7.44
		250	$ 6.91
		500	$ 6.53
		1000	$ 6.18

A1DXH Series

IDC CABLE - AKR64H/AE64G/X

Part	Cable Termination	Shielding	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Features	Number of Positions	Pitch - Cable	Pitch - Cable	Connector Type	Color
TE Connectivity AMP Connectors A1DXH-6436G	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	64	0.05 "	1.27 mm	Socket to Cable
TE Connectivity AMP Connectors A1DXH-2636G	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	26	0.05 "	1.27 mm	Socket to Cable
TE Connectivity AMP Connectors A1DXH-3036M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	30	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-5036M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	50	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-2636M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	26	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-1436M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	14	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-2436M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	24	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-3436M	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	34	0.05 "	1.27 mm	Socket to Cable	Multiple, Ribbon
TE Connectivity AMP Connectors A1DXH-3036G	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	30	0.05 "	1.27 mm	Socket to Cable
TE Connectivity AMP Connectors A1DXH-4036G	IDC	Unshielded	3 ft	914.4 mm	0.1 in	2.54 mm	15 µin	0.38 µm	Gold	2	Polarizing Key, Strain Relief	40	0.05 "	1.27 mm	Socket to Cable

Description

General part information

A1DXH Series

40 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources
