THA-PDKG-03

Active

TE Connectivity Aerospace, Defense and Marine

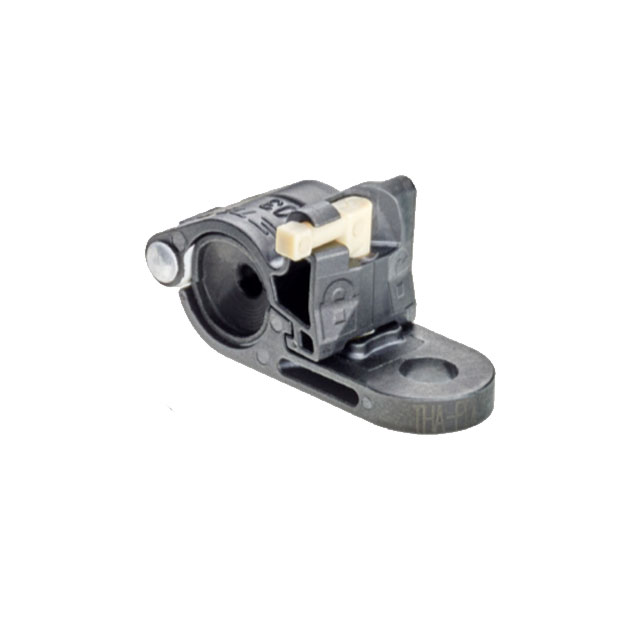

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THA-PDKG-03

Active

TE Connectivity Aerospace, Defense and Marine

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.03
		10	$ 39.43
		25	$ 37.73
		50	$ 36.51
		100	$ 35.29
		250	$ 33.35

Description

General part information

THA Series

Cable Clamp, P-Type Black Fastener 0.125" ~ 0.250" (3.18mm ~ 6.35mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	THA-PDKG-03	THA Series

Bundle Center to Mounting Center	18.2 mm	18.2 mm
Bundle Center to Mounting Center	0.717 in	0.717 - 31.6 in
Bundle Center to Mounting Center	-	0.795 in
Bundle Center to Mounting Center	-	20.2 mm
Bundle Center to Mounting Center	-	0.85 - 1.244 in
Color	Black	Black
Height	-	16.51 - 41.7 mm
Height	-	0.65 - 1.642 "
Height [diameter]	12.9 mm	12.9 - 30.91 mm
Height [diameter]	0.508 in	0.508 - 1.217 in
Length	1.122 in	1.122 - 2.213 in
Length	28.5 mm	28.5 - 56.2 mm
Length	-	43.21 - 49.8 mm
Length	-	1.701 in
Length	-	1.961 in
Material	Polyetheretherketone (PEEK), Glass Filled	Polyetheretherketone (PEEK), Glass Filled
Mounting Type	Fastener	Fastener
Opening Size	-	0.375 - 1.25 in
Opening Size	-	6.35 - 9.52 mm
Opening Size	-	0.25 - 1.125 in
Opening Size	-	9.53 mm
Opening Size	-	15.88 - 31.75 mm
Opening Size	-	12.7 - 28.58 mm
Opening Size	-	12.7 mm
Opening Size [Max] [custom]	0.25 in	0.25 - 1 in
Opening Size [Max] [custom]	6.35 mm	6.35 - 25.4 mm
Opening Size [Min] [custom]	0.125 in	0.125 - 0.875 in
Opening Size [Min] [custom]	3.18 mm	3.18 - 22.22 mm
Panel Hole Size	0.201 in	0.201 in
Panel Hole Size	5.1 mm	5.1 mm
Type	Clamp, P-Type	Clamp, P-Type
Type Attributes	Locking, Cushioned, Hinged	Hinged, Cushioned, Locking

THA Series

CBL CLAMP P-TYPE BLACK FASTENER

Part	Height [z]	Height [z]	Type	Opening Size [Max] [z]	Opening Size [Min]	Opening Size [Min] [z]	Opening Size [Max]	Type Attributes	Material	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Mounting Type	Color	Length	Length	Panel Hole Size	Panel Hole Size	Height [diameter]	Height [diameter]	Opening Size [Min] [custom]	Opening Size [Max] [custom]	Opening Size [Max] [custom]	Opening Size [Min] [custom]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Opening Size [Max] [z]	Opening Size [Min] [z]	Length [x]	Length [x]	Opening Size [Max]	Length [x]
TE Connectivity Aerospace, Defense and Marine THA-PDKG-05	16.51 mm	0.65 "	Clamp, P-Type	0.375 in	6.35 mm	0.25 in	9.53 mm	Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled	0.795 in	20.2 mm	Fastener	Black	32.51 mm	1.28 in	0.201 in	5.1 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-03			Clamp, P-Type					Cushioned, Hinged, Locking	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black	28.5 mm	1.122 in	0.201 in	5.1 mm	12.9 mm	0.508 in	0.125 in	0.25 in	6.35 mm	3.18 mm	18.2 mm	0.717 in
TE Connectivity Aerospace, Defense and Marine THA-PDKG-13			Clamp, P-Type	0.875 in		0.75 in		Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black	46.2 mm	1.819 in	0.201 in	5.1 mm	30.91 mm	1.217 in						26.7 mm	1.051 in	22.22 mm	19.05 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-11	27.3 mm	1.075 in	Clamp, P-Type					Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black			0.201 in	5.1 mm			0.625 in	0.75 in	19.05 mm	15.88 mm		25.4 mm	1 "			43.21 mm	1.701 in
TE Connectivity Aerospace, Defense and Marine THA-PDKG-19	41.7 mm	1.642 in	Clamp, P-Type	1.25 in		1.125 in		Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black	56.2 mm	2.213 in	0.201 in	5.1 mm								31.6 mm	1.244 in	31.75 mm	28.58 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-07	20.1 mm	0.791 in	Clamp, P-Type	0.5 in	9.52 mm	0.375 in		Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black	35.71 mm	1.406 "	0.201 in	5.1 mm								21.59 mm	0.85 in					12.7 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-09	23.7 mm	0.933 in	Clamp, P-Type	0.625 in		0.5 in		Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black			0.201 in	5.1 mm										15.88 mm	12.7 mm
TE Connectivity Aerospace, Defense and Marine THA-PDKG-15	34.5 mm	1.358 "	Clamp, P-Type					Cushioned, Hinged	Polyetheretherketone (PEEK), Glass Filled			Fastener	Black			0.201 in	5.1 mm			0.875 in	1 in	25.4 mm	22.22 mm		28.6 mm	1.126 in			49.8 mm			1.961 in
