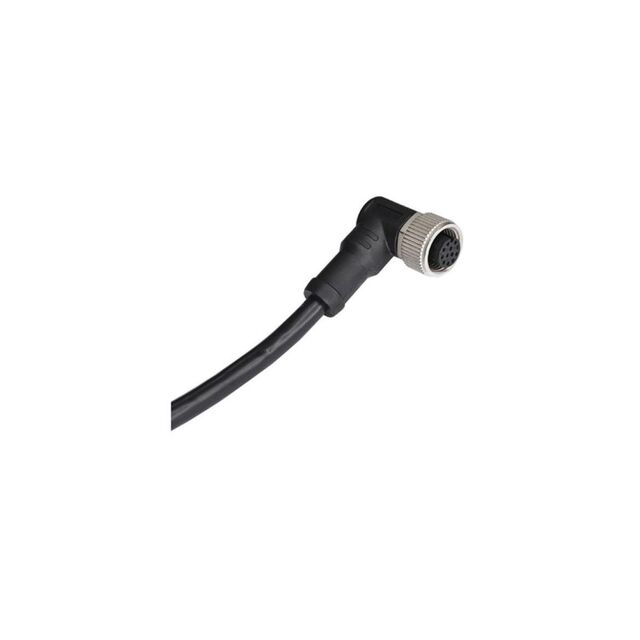

M12A-06BFFM-SR8B01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 06 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 2A, 06 PINS, FEMALE CONNECTOR, FEMALE CONTACT, RIGHT ANGLE, SCREW THREAD, OVERMOL

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-06BFFM-SR8B01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	6
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyurethane (PUR)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Cable Type	Usage	1st Connector Orientation	1st Connector Mounting Type	1st Connector Gender	2nd Connector Type	Length [x]	Length [x]	1st Connector Type	1st Connector Number of Positions Loaded	Shielding	Ingress Protection	Assembly Configuration	Cable Material	Color	1st Connector Number of Positions	1st Connector Shell Size - Insert
Amphenol LTW M12A-06BFFM-SL8B01	Round	Industrial Environments	A	Free Hanging (In-Line)	Female Sockets	Wire Leads	1 m	3.28 ft	Plug	All	Unshielded	IP68 IP69K	Standard	Polyurethane (PUR)	Black	6	M12
Amphenol LTW M12A-06BFFM-SR8D01	Round	Industrial Environments	A	Free Hanging (In-Line)	Female Sockets	Wire Leads	1 m	3.28 ft	Plug Right Angle	All	Unshielded	IP68 IP69K	Standard	Polyvinyl Chloride (PVC)	Black	6	M12
Amphenol LTW M12A-06BFFM-SR8B01	Round	Industrial Environments	A	Free Hanging (In-Line)	Female Sockets	Wire Leads	1 m	3.28 ft	Plug Right Angle	All	Unshielded	IP68 IP69K	Standard	Polyurethane (PUR)	Black	6	M12

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
