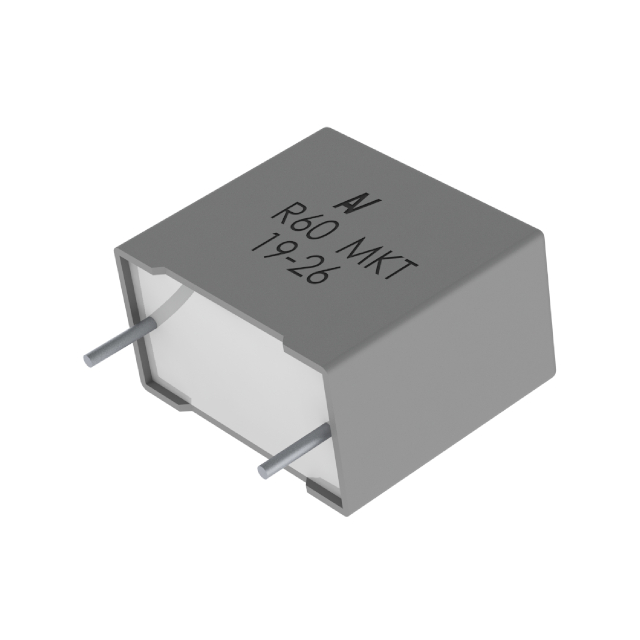

R60PR34705040J

Active

KEMET

FILM CAPACITOR, R60 SERIES, 0.47 UF, 5%, PET (POLYESTER), 630 V ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, R60 SERIES, 0.47 UF, 5%, PET (POLYESTER), 630 V ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Tolerance	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Applications	Dielectric Material	Ratings
KEMET R60PR44705040K	Through Hole	PC Pins	105 ░C	-55 °C	27.5 mm	1.083 in	10 %	4.7 µF	Radial	37.1 mm	1.461 in	0.866 in	32 mm	22 mm	1.26 in	220 V	Automotive	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)
KEMET R60PR34705040J	Through Hole	PC Pins	105 ░C	-55 °C	27.5 mm	1.083 in	5 %	0.47 µF	Radial	17.1 mm	0.673 in	0.354 in	32 mm	9 mm	1.26 in	220 V	Automotive	Polyester Metallized	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF Film Capacitor 220V 630V Polyester, Metallized Radial
