3089A 01010000

Active

Belden Inc.

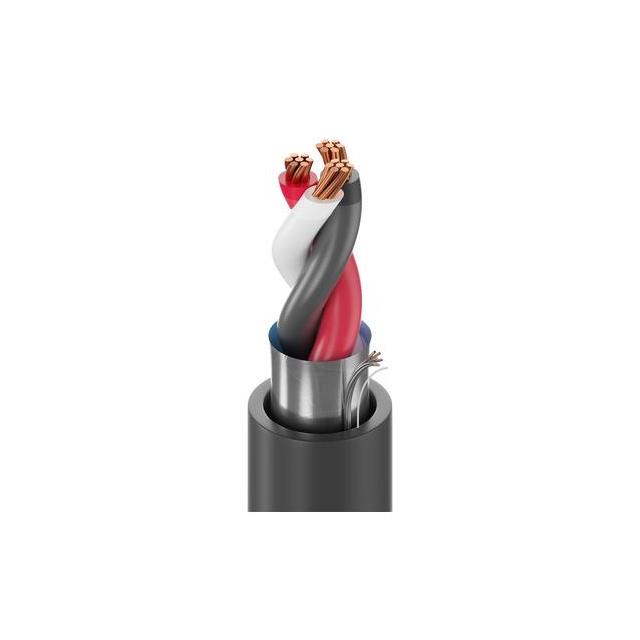

CABLE 3 COND 18AWG BLACK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3 COND 18AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	3089A 01010000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.194 mm
Jacket (Insulation) Thickness	0.047 in
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	3
Ratings	TC-ER, UL Style NPLF
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	18 AWG

Part	Wire Gauge	Jacket (Insulation) Material	Features	Shield Type	Cable Type	Number of Conductors	Ratings	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Material	Jacket Color	Usage	Length	Length [x]
Belden Inc. 3089A 01010000	18 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	Foil	Multi-Conductor	3	TC-ER UL Style NPLF	Copper Bare	1.194 mm	0.047 in	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	26 AWG	7	100 %	Aluminum	Black	Instrumentation	3048 m	10000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	10000	$ 1.10

General part information

3 (1 Triad Twisted) Conductor Multi-Conductor Cable Black 18 AWG Foil 10000' (3048.0m)
