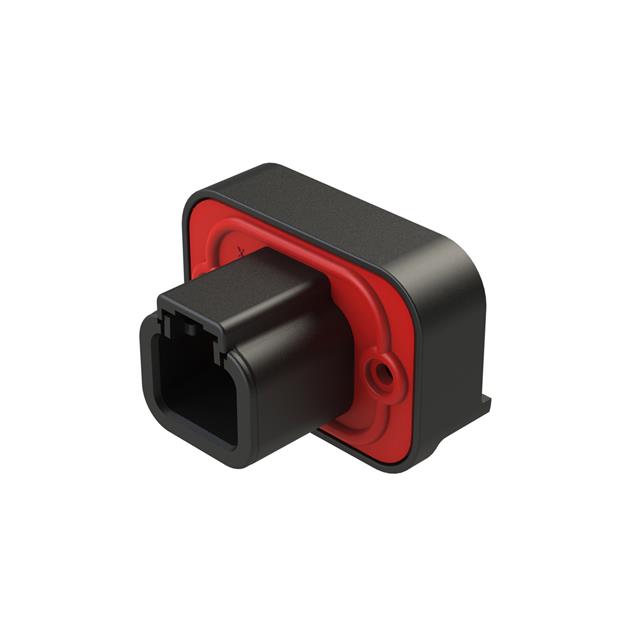

ATP15-2P-BM03BLK
ActiveAmphenol Sine Systems Corp
2 POSITION STRAIGHT PCB FLANGE M
Deep-Dive with AI
Search across all available documentation for this part.
ATP15-2P-BM03BLK
ActiveAmphenol Sine Systems Corp
2 POSITION STRAIGHT PCB FLANGE M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATP15-2P-BM03BLK |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post [x] | 0.181 in |
| Contact Length - Post [x] | 4.6 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 25 A |
| Fastening Type | Latch Holder |
| Features | Sealed, Mounting Flange, Board Lock |
| Ingress Protection | IP67 |
| Insulation Color | Black |
| Insulation Height | 1.339 " |
| Insulation Height | 34 mm |
| Insulation Material | Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 6.71 mm |
| Pitch - Mating | 0.264 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.91 | |
| 10 | $ 10.69 | |||
| 25 | $ 9.66 | |||
| 50 | $ 8.97 | |||
| 100 | $ 8.34 | |||
| 250 | $ 7.60 | |||
| 500 | $ 7.10 | |||
| 1000 | $ 6.64 | |||
Description
General part information
ATP15-2P Series
Connector Header Panel Mount, Through Hole 2 position 0.264" (6.71mm)
