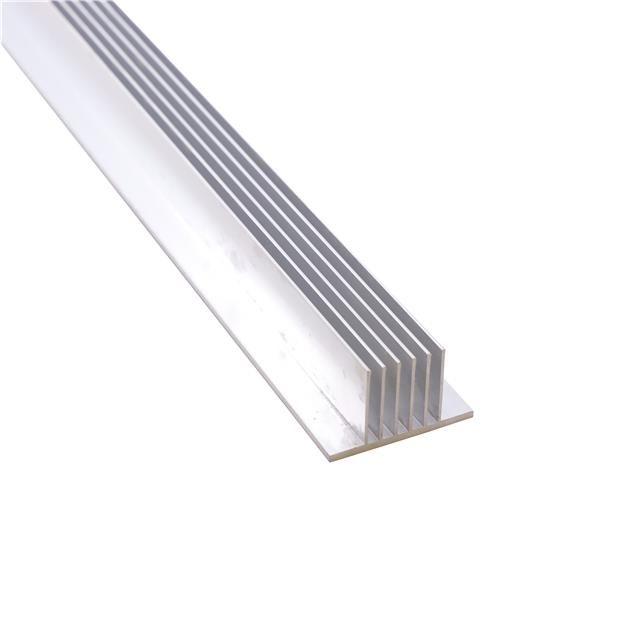

ATS-EXL65-1220-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS EXTRUSION PROFILE, AL6063, LENGTH 1220MM, WIDTH 25MM, HEIGHT 25MM

ATS-EXL65-1220-R0

Active

Advanced Thermal Solutions Inc.

HEAT SINKS EXTRUSION PROFILE, AL6063, LENGTH 1220MM, WIDTH 25MM, HEIGHT 25MM

Description Specifications Series Pricing CAD Documents

Description

General part information

ATS-EXL Series

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-EXL65-1220-R0

Attachment Method	Adhesive
Fin Height	0.984 in
Length	48.032 in
Material	Aluminum
Material Finish	Degreased
Shape	Fins, Rectangular
Thermal Resistance	11.7 °C/W, 4.5 °C/W
Type	Top Mount, Extrusion
Width	1.614 in

ATS-EXL Series

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

...

Part	Material Finish	Material	Thermal Resistance	Width	Type	Fin Height	Length	Shape	Attachment Method
Advanced Thermal Solutions Inc. ATS-EXL98-300-R0	Degreased	Aluminum	0.95 °C/W 4.69 °C/W	4.724 in	Extrusion Top Mount	1.417 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL65-1220-R0	Degreased	Aluminum	4.5 °C/W 11.7 °C/W	1.614 in	Extrusion Top Mount	0.984 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL110-1220-R0	Degreased	Aluminum	0.72 °C/W 2.47 °C/W	7.874 in	Extrusion Top Mount	1.772 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL76-300-R1	Degreased	Aluminum	0.5 °C/W 5.2 °C/W	3.677 in	Extrusion Top Mount	1.575 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL67-1220-R0	Degreased	Aluminum	5.8 °C/W 21.7 °C/W	1.083 in	Extrusion Top Mount	0.531 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL103-300-R0	Degreased	Aluminum	1.12 °C/W 4.61 °C/W	4.528 in	Extrusion Top Mount	1.323 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL61-1220-R0	Degreased	Aluminum	29 °C/W 57 °C/W	0.591 in	Extrusion Top Mount	0.236 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL84-300-R0	Degreased	Aluminum		2.756 in	Extrusion Top Mount	0.984 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL64-300-R0	Degreased	Aluminum	3.9 °C/W 18.5 °C/W	0.984 in	Extrusion Top Mount	0.866 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL77-300-R0	Degreased	Aluminum	1 °C/W 12 °C/W	4.754 in	Extrusion Top Mount	0.654 in	11.811 in	Fins Rectangular	Adhesive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

ATS-EXL65-1220-R0 | Datasheet
