1445097-7

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 7POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1445097-7

Obsolete

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 7POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1445097-7

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Insulation Color	Black
Insulation Height	0.152 in
Insulation Height	3.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.118 in
Pitch - Mating	3 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

1445097 Series

Part	Material Flammability Rating	Style	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Number of Positions	Contact Material	Number of Positions Loaded	Fastening Type	Applications	Voltage Rating	Contact Finish - Mating	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Color	Mounting Type	Shrouding	Insulation Material
TE Connectivity Raychem Cable Protection 1445097-8	UL94 V-0	Board to Cable/Wire	Varies by Wire Gauge	0.114 in	2.9 mm	Tin-Lead	2.54 µm	100 µin	0.118 in	3 mm	Square	1	30 Áin	0.76 Ám	0.152 in	3.85 mm	8	Brass	All	Locking Ramp	General Purpose	250 VDC	Gold	Solder	Header	-40 °C	105 ░C	Male Pin	Black	Through Hole Right Angle	Shrouded - 4 Wall	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 3-1445097-0	UL94 V-0	Board to Cable/Wire	Varies by Wire Gauge	0.114 in	2.9 mm	Tin	2.54 µm	100 µin	0.118 in	3 mm	Square	1	30 Áin	0.76 Ám	0.152 in	3.85 mm	10	Brass	All	Locking Ramp	General Purpose	250 VDC	Gold	Solder	Header	-40 °C	105 ░C	Male Pin	Black	Through Hole Right Angle	Shrouded - 4 Wall	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 2-1445097-2	UL94 V-0	Board to Cable/Wire	Varies by Wire Gauge	0.114 in	2.9 mm	Tin	2.54 µm	100 µin	0.118 in	3 mm	Square	1	30 Áin	0.76 Ám	0.152 in	3.85 mm	2	Brass	All	Locking Ramp	General Purpose	250 VDC	Gold	Solder	Header	-40 °C	105 ░C	Male Pin	Black	Through Hole Right Angle	Shrouded - 4 Wall	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 2-1445097-9	UL94 V-0	Board to Cable/Wire	Varies by Wire Gauge	0.114 in	2.9 mm	Tin	2.54 µm	100 µin	0.118 in	3 mm	Square	1	30 Áin	0.76 Ám	0.152 in	3.85 mm	9	Brass	All	Locking Ramp	General Purpose	250 VDC	Gold	Solder	Header	-40 °C	105 ░C	Male Pin	Black	Through Hole Right Angle	Shrouded - 4 Wall	Nylon Polyamide (PA)
TE Connectivity Raychem Cable Protection 1445097-7	UL94 V-0	Board to Cable/Wire	Varies by Wire Gauge	0.114 in	2.9 mm	Tin-Lead	2.54 µm	100 µin	0.118 in	3 mm	Square	1	30 Áin	0.76 Ám	0.152 in	3.85 mm	7	Brass	All	Locking Ramp	General Purpose	250 VDC	Gold	Solder	Header	-40 °C	105 ░C	Male Pin	Black	Through Hole Right Angle	Shrouded - 4 Wall	Nylon Polyamide (PA)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1445097 Series

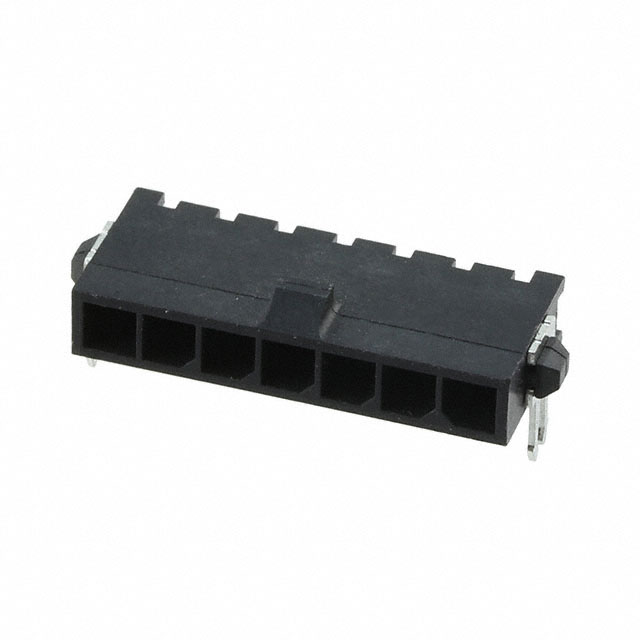

Connector Header Through Hole, Right Angle 7 position 0.118" (3.00mm)
