GD55LB01GEY2GY

Active

GigaDevice Semiconductor (HK) Limited

IC FLASH 1GBIT SPI/QUAD 8WSON

Search across all available documentation for this part.

Active

GigaDevice Semiconductor (HK) Limited

IC FLASH 1GBIT SPI/QUAD 8WSON

Technical Specifications

Parameters and characteristics for this part

Specification	GD55LB01GEY2GY

Access Time	6 ns
Clock Frequency	166 MHz
Memory Format	FLASH
Memory Interface	Quad I/O, QPI, SPI, DTR
Memory Organization	128 M
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

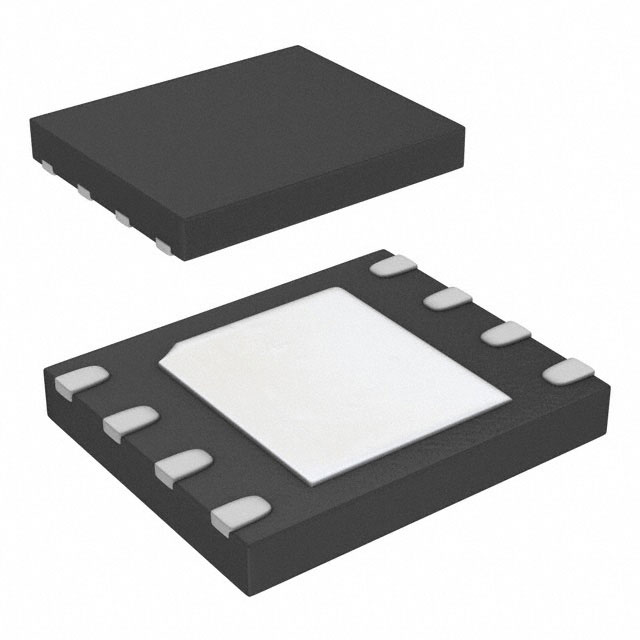

Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WSON (6x8)
Technology	FLASH - NOR (SLC)
Voltage - Supply [Max]	2 V
Voltage - Supply [Min]	1.65 V
Write Cycle Time - Word, Page [custom]	2 ms
Write Cycle Time - Word, Page [custom]	140 µs

Part	Technology	Access Time	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Format	Memory Size	Clock Frequency	Mounting Type	Package / Case	Memory Organization	Memory Type
GigaDevice Semiconductor (HK) Limited GD55LB01GEY2GY	FLASH - NOR (SLC)	6 ns	2 ms	140 µs	105 °C	-40 °C	DTR QPI Quad I/O SPI	8-WSON (6x8)	2 V	1.65 V	FLASH	1 Mbit	166 MHz	Surface Mount	8-WDFN Exposed Pad	128 M	Non-Volatile

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	4800	$ 13.40

General part information

FLASH - NOR (SLC) Memory IC 1Gbit SPI - Quad I/O, QPI, DTR 166 MHz 6 ns 8-WSON (6x8)

Technical documentation and resources

No documents available
