25LB18-Q

Active

Grayhill Inc.

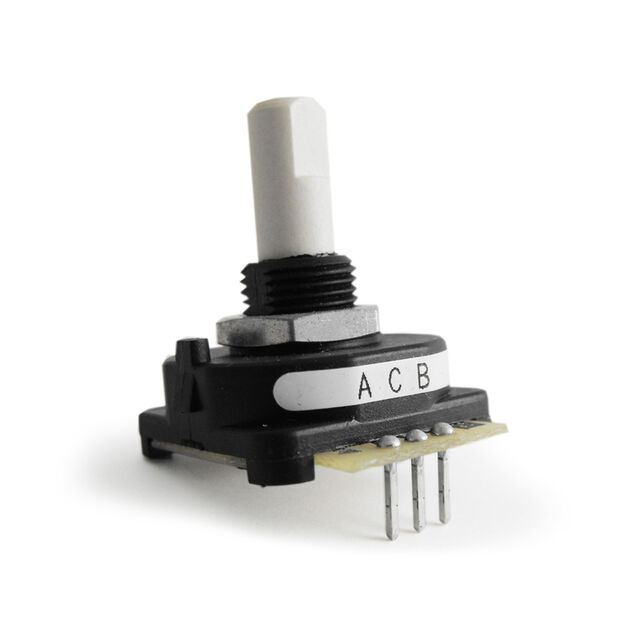

ROTARY ENCODER MECHANICAL 20PPR

Search across all available documentation for this part.

Active

Grayhill Inc.

ROTARY ENCODER MECHANICAL 20PPR

Technical Specifications

Parameters and characteristics for this part

Specification	25LB18-Q

Actuator Type	0.25
Actuator Type	Flatted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	20
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

ROTARY ENCODER MECHANICAL 20PPR

Part	Mounting Type	Detent	Orientation	Output Type	Built in Switch	Encoder Type	Termination Style	Actuator Type	Actuator Type	Rotational Life (Cycles Min) [Min]	Pulses per Revolution
Grayhill Inc. 25LB18-Q	Panel, PCB Through Hole		Vertical	Quadrature (Incremental)		Mechanical	PC Pin	0.25	Flatted End	100K	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 20 Quadrature (Incremental) Vertical
