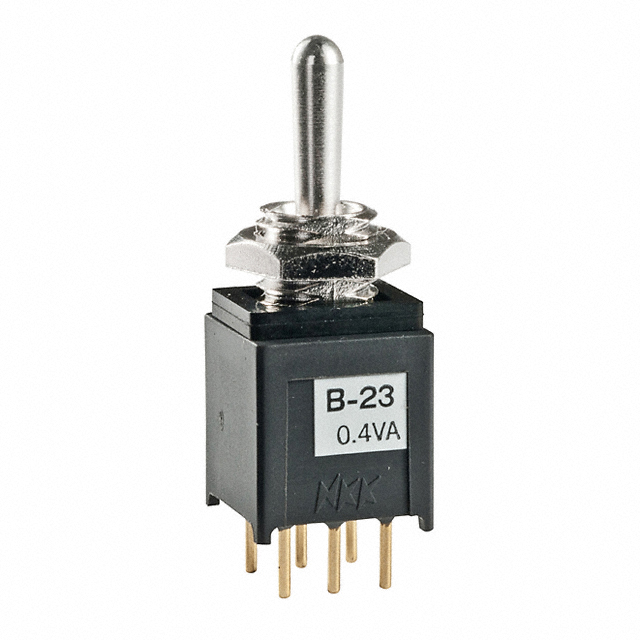

B23A1P

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	B23A1P

Actuator Length [x]	8 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M6 x 0.75
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6 mm
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Features	Switch Function	Voltage Rating - AC	Circuit	Termination Style	Actuator Material	Illumination	Voltage Rating - DC	Bushing Thread	Actuator Length [x]	Electrical Life	Actuator Type	Mounting Type
NKK Switches B23A1P	6 mm	0.4 VA	-30 ░C	85 °C	Epoxy Sealed Terminals	On-Off-On	28 V	DPDT	PC Pin	Brass Nickel Plated	Non-Illuminated	28 V	M6 x 0.75	8 mm	50000 Cycles	Standard Round
NKK Switches B23A1H	6 mm	0.4 VA	-30 ░C	85 °C	Epoxy Sealed Terminals	On-Off-On	28 V	DPDT	PC Pin	Brass Nickel Plated	Non-Illuminated	28 V	M6 x 0.75	8 mm	50000 Cycles	Standard Round	Panel Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
