681M5W1103L001

Active

MH Connectors

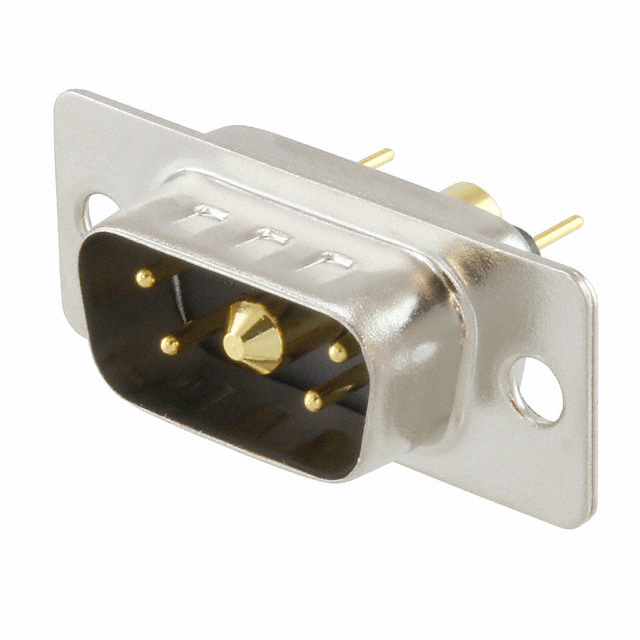

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DE-5W1, 4 CONTACTS, PLUG, 1, SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	681M5W1103L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder

Part	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination	Contact Material	Connector Type	Contact Type	Dielectric Material	Contact Finish Thickness	Material Flammability Rating	Shell Size, Connector Layout	Number of Positions	Number of Rows	Flange Feature	Connector Style	Shell Material, Finish	Features	Contact Finish	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]
MH Connectors 681M5W1103L001	Black	Panel Mount Through Hole	-55 °C	125 °C	5 A 40 A	Solder	Copper Alloy	Male Pins Plug	Signal and Power	Polybutylene Terephthalate (PBT)	Flash	UL94 V-0	1 (DE E) - 5W1	5	2	Housing/Shell (Unthreaded)	Combo D-Sub	Nickel Plated Steel	Grounding Indents	Gold
MH Connectors 681M5W1203L001	Black	Panel Mount Through Hole	-55 °C	125 °C	5 A	Solder	Copper Alloy	Receptacle Female Sockets	Signal and Power	Polybutylene Terephthalate (PBT)	Flash	UL94 V-0	1 (DE E) - 5W1	5	2	Housing/Shell (Unthreaded)	Combo D-Sub	Nickel Plated Steel		Gold	20 Amps	40 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	110	$ 6.04
Newark	Each	100	$ 6.38
		250	$ 6.03

General part information

5 (4 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
