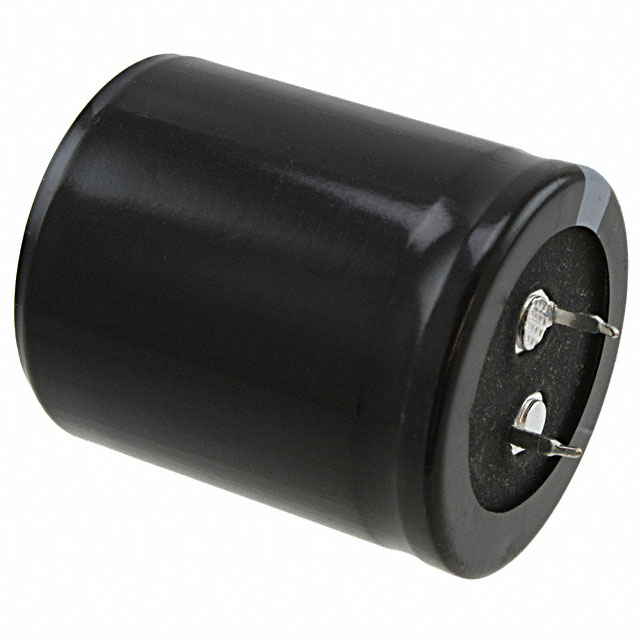

ELG688M063AT4AA

Active

KEMET

CAP ALUM 6800UF 20% 63V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 6800UF 20% 63V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELG688M063AT4AA

Applications	General Purpose
Capacitance	6800 µF
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	4.234 A
Ripple Current @ Low Frequency	3.65 A
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance	20 %
Voltage - Rated	63 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Lifetime @ Temp.	Voltage - Rated	Capacitance	Tolerance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications
KEMET ELG688M063AT4AA	1.378 in	35 mm	Radial Can - Snap-In	2000 Hrs	63 V	6800 µF	20 %	3.65 A	0.394 in	10 mm	Polar	42 mm	1.654 in	4.234 A	Through Hole	-40 °C	105 ░C	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 3.87
Newark	Each	500	$ 3.80

General part information

6800 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
