TSM-129-01-F-DV-A
ActiveSamtec Inc.

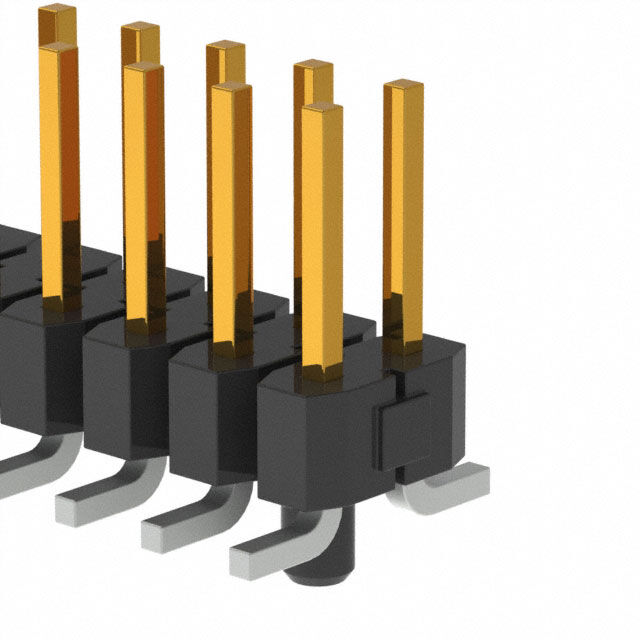

CONN UNSHROUDED HEADER HDR 58 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSM-129-01-F-DV-A
ActiveSamtec Inc.
CONN UNSHROUDED HEADER HDR 58 POS 2.54MM SOLDER ST TOP ENTRY SMD TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSM-129-01-F-DV-A |
|---|---|
| Connector Type | Cuttable, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 58 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TSM-129 Series
| Part | Termination | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows | Contact Finish - Post | Insulation Color | Contact Material | Insulation Height | Insulation Height | Shrouding | Contact Length - Mating | Contact Length - Mating | Connector Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Style | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Type | Number of Positions Loaded | Fastening Type | Insulation Material | Mounting Type | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Tin | Black | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | 3.05 mm | 0.12 in | Cuttable Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount | Square | 0.1 in | 2.54 mm | Gold | |||
Samtec Inc. | Solder | Pick and Place | UL94 V-0 | 10 çin | 0.25 çm | 1 | Tin | Black | Phosphor Bronze | 0.12 in | 3.05 mm | Unshrouded | 5.84 mm | Header | 29 | -55 °C | 125 °C | Board to Board Cable | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Square | 0.1 in | 2.54 mm | Gold | 0.23 in | |||||
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 10 çin | 0.25 çm | 2 | Gold | Black | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | 10.67 mm | 0.42 in | Cuttable Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount | Square | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | |
Samtec Inc. | Solder | Pick and Place | UL94 V-0 | 30 Áin | 0.76 Ám | 1 | Tin | Black | Phosphor Bronze | 0.12 in | 3.05 mm | Unshrouded | 8.13 mm | 0.32 in | Header | 29 | -55 °C | 125 °C | Board to Board Cable | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Square | 0.1 in | 2.54 mm | Gold | |||||
Samtec Inc. | |||||||||||||||||||||||||||||||||
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 10 çin | 0.25 çm | 2 | Tin | Black | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | 10.67 mm | 0.42 in | Cuttable Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount | Square | 0.1 in | 2.54 mm | Gold | |||
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 30 Áin | 0.76 Ám | 2 | Tin | Black | Phosphor Bronze | 0.24 in | 6.1 mm | Unshrouded | 8.13 mm | 0.32 in | Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount Right Angle | Square | 0.1 in | 2.54 mm | Gold | |||
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 10 çin | 0.25 çm | 2 | Gold | Black | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | 3.05 mm | 0.12 in | Cuttable Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount | Square | 0.1 in | 2.54 mm | Gold | 3 µin | 0.076 µm | |
Samtec Inc. | |||||||||||||||||||||||||||||||||
Samtec Inc. | Solder | Board Guide | UL94 V-0 | 3 µin | 0.076 µm | 2 | Tin | Black | Phosphor Bronze | 0.1 in | 2.54 mm | Unshrouded | 5.84 mm | Cuttable Header | 58 | -55 °C | 125 °C | Board to Board Cable | 2.54 mm | 0.1 in | Male Pin | All | Push-Pull | Liquid Crystal Polymer (LCP) | Surface Mount | Square | 0.1 in | 2.54 mm | Gold | 0.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TSM-129 Series
Connector Header Surface Mount 58 position 0.100" (2.54mm)
