0041.9157.5327

Active

SCHURTER Inc.

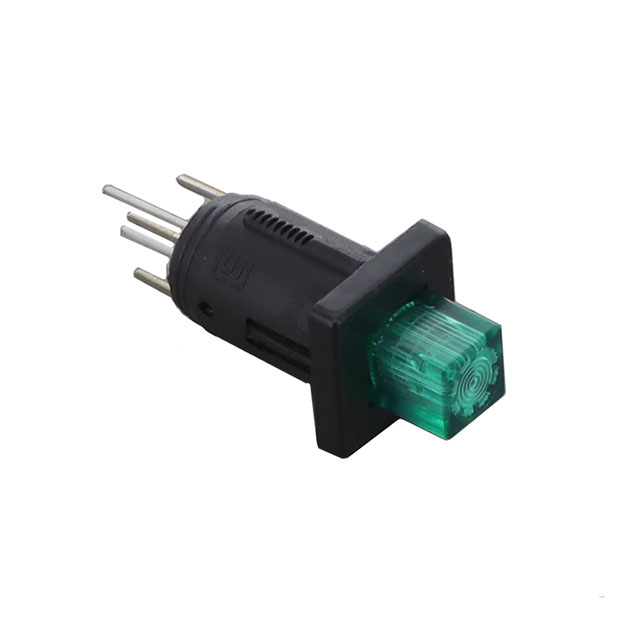

SWITCH PUSH DPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH DPST-NO 200MA 60V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0041.9157.5327	0041.9157 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Round, Button, Square
Circuit	DPST-NO	DPST-NO
Color - Actuator/Cap	Green	Green
Current Rating (Amps)	200 mA	200 mA
Electrical Life	10000 Cycles	10000 Cycles
Illumination Type, Color	LED, Green	LED, Green
Illumination Voltage (Nominal)	2 VDC	2 VDC
Ingress Protection	IP40	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	8 mm	8 mm
Switch Function	Off-On	Off-On
Termination Style	PC Pin	PC Pin
Type	Illuminated, Standard	Illuminated, Standard
Voltage Rating - AC	60 V	60 V
Voltage Rating - DC	50 VDC	50 VDC

SWITCH PUSH DPST-NO 200MA 60V

Part	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Current Rating (Amps)	Mechanical Life	Type	Voltage Rating - AC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Termination Style	Actuator Type	Ingress Protection	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)
SCHURTER Inc. 0041.9157.1137	50 VDC	Off-On	8 mm	DPST-NO	10000 Cycles	200 mA	10000 Steps	Illuminated, Standard	60 V	Panel Mount, Front	-25 °C	60 °C	No Marking	PC Pin	Button, Round	IP40
SCHURTER Inc. 0041.9157.5327	50 VDC	Off-On	8 mm	DPST-NO	10000 Cycles	200 mA	10000 Steps	Illuminated, Standard	60 V	Panel Mount, Front	-25 °C	60 °C	No Marking	PC Pin	Button, Square	IP40	Green	Green, LED	2 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST-NO Standard, Illuminated Panel Mount, Front
