HSC753R3J

Active

TE Connectivity Passive Product

RES CHAS MNT 3.3 OHM 5% 75W

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES CHAS MNT 3.3 OHM 5% 75W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Power (Watts)	Composition	Coating, Housing Type	Mounting Feature	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity Passive Product HSC7550KK	-55 °C	200 °C	10 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	30 ppm/°C	75 W	Wirewound	Aluminum	Flanges	50 kOhms	26 mm	1.024 in
TE Connectivity Passive Product HSC7513RJ	-55 °C	200 °C	5 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	50 ppm/°C	75 W	Wirewound	Aluminum	Flanges	13 Ohms	26 mm	1.024 in
TE Connectivity Passive Product HSC75100RJ			5 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	30 ppm/°C	75 W	Wirewound	Aluminum	Flanges	100 Ohms	26 mm	1.024 in
TE Connectivity Passive Product HSC753R3J	-55 °C	200 °C	5 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	50 ppm/°C	75 W	Wirewound	Aluminum	Flanges	3.3 Ohms	26 mm	1.024 in
TE Connectivity Passive Product HSC7547RJ	-55 °C	200 °C	5 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	50 ppm/°C	75 W	Wirewound	Aluminum	Flanges	47 Ohms	26 mm	1.024 in
TE Connectivity Passive Product HSC75220RJ	-55 °C	200 °C	5 %	Solder Lugs	1.87 "	49 mm	47.5 mm	1.929 in	30 ppm/°C	75 W	Wirewound	Aluminum	Flanges	220 Ohms	26 mm	1.024 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

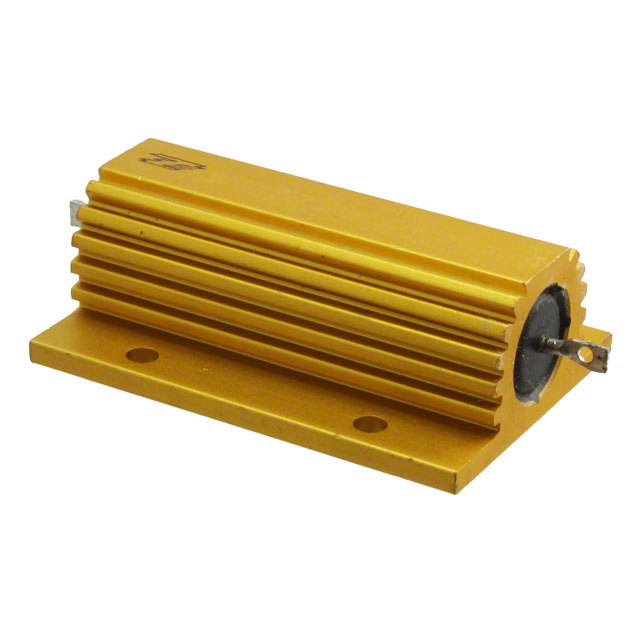

3.3 Ohms ±5% 75W Wirewound Chassis Mount Resistor
