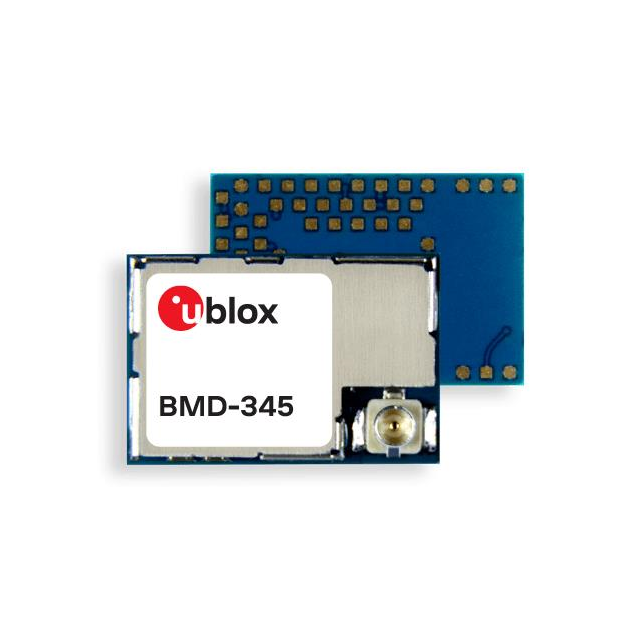

BMD-345-EVAL

Active

u-blox

EVAL BOARD FOR BMD-345 NRF52840

Search across all available documentation for this part.

Active

u-blox

EVAL BOARD FOR BMD-345 NRF52840

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMD-345-EVAL	BMD-345 Series

Antenna Type	-	Antenna Not Included, U.FL
Current - Transmitting	-	4.8 mA
Data Rate	-	1 Mbps
For Use With/Related Products	nRF52840, BMD-345	nRF52840, BMD-345
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	1 - 256 MB
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Power - Output	-	18 dBm
Protocol	-	Zigbee®, Thread, Bluetooth v5.0
RF Family/Standard	-	Bluetooth, 802.15.4
Sensitivity	-	-102 dBm
Serial Interfaces	-	PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S
Supplied Contents	Cable(s), Board(s)	Cable(s), Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)
Utilized IC / Part	-	nRF52840
Voltage - Supply	-	3.6 V
Voltage - Supply	-	2 V

RF TXRX MOD 802.15.4 BTU.FL SMD

Part	Protocol	Frequency	Power - Output	Mounting Type	Serial Interfaces	Current - Transmitting	Data Rate	Utilized IC / Part	RF Family/Standard	Antenna Type	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensitivity	Supplied Contents	For Use With/Related Products	Type
u-blox BMD-345-A-R	Bluetooth v5.0, Thread, Zigbee®	2.4 GHz	18 dBm	Surface Mount	ADC, GPIO, I2C, I2S, PDM, PWM, SPI, UART, USB	4.8 mA	1 Mbps	nRF52840	802.15.4, Bluetooth	Antenna Not Included, U.FL	1 MB, 256 kB	3.6 V	2 V	85 °C	-40 °C	Module	-102 dBm
u-blox BMD-345-EVAL		2.4 GHz																Board(s), Cable(s)	BMD-345, nRF52840	802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE), Transceiver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 119.00

General part information

BMD-34 BMD-345, nRF52840 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board
