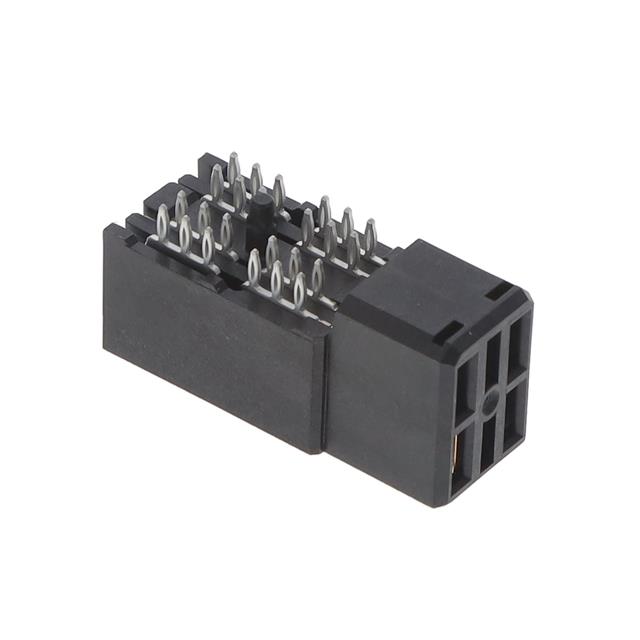

10052620-5455P00LF
ActiveAmphenol ICC (FCI)
CONN RCPT BLADE PWR 4POS EDGE MT
Deep-Dive with AI
Search across all available documentation for this part.
10052620-5455P00LF
ActiveAmphenol ICC (FCI)
CONN RCPT BLADE PWR 4POS EDGE MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10052620-5455P00LF |
|---|---|
| Color | Black |
| Connector Style | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets |
| Connector Usage | Coplanar |
| Connector Usage | Daughtercard |
| Contact Finish | GXT™, Gold or Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Layout, Typical | 4 Power |
| Features | Board Guide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Columns | 2 |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Termination | Press-Fit |
10052620 Series
| Part | Number of Rows | Mounting Type | Connector Usage | Connector Usage | Number of Positions | Termination | Material Flammability Rating | Connector Type | Contact Layout, Typical | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Number of Positions Loaded | Number of Columns | Features | Contact Finish | Color | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 2 | Board Edge Right Angle Through Hole | Coplanar | Daughtercard | 4 | Press-Fit | UL94 V-0 | Receptacle Female Blade Sockets | 4 Power | 0.76 Ám | 30 Áin | Blade Power | All | 2 | Board Guide | Gold or Gold GXT™ | Black | |||
Amphenol ICC (FCI) | 2 | Board Edge Right Angle Through Hole | Coplanar | Daughtercard | 4 | Press-Fit | UL94 V-0 | Receptacle Female Blade Sockets | 4 Power | 0.76 Ám | 30 Áin | Blade Power | All | 2 | Board Guide | Gold or Gold GXT™ | Black | |||
Amphenol ICC (FCI) | 2 | Board Edge Right Angle Through Hole | Coplanar | Daughtercard | 4 | Press-Fit | UL94 V-0 | Receptacle Female Blade Sockets | 4 Power | 0.76 Ám | 30 Áin | Blade Power | All | 2 | Board Guide | Gold or Gold GXT™ | Black | |||
Amphenol ICC (FCI) | 2 | Board Edge Right Angle Through Hole | 4 | Press-Fit | UL94 V-0 | Receptacle Female Blade Sockets | 4 Power | 0.76 Ám | 30 Áin | Blade Power | All | Board Guide | Gold or Gold GXT™ | Black | 150 VDC | 85 °C | -40 °C | |||
Amphenol ICC (FCI) | 2 | Board Edge Right Angle Through Hole | Coplanar | Daughtercard | 4 | Press-Fit | UL94 V-0 | Receptacle Female Blade Sockets | 4 Power | 0.76 Ám | 30 Áin | Blade Power | All | 2 | Board Guide | Gold or Gold GXT™ | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.44 | |
| 10 | $ 10.33 | |||
| 25 | $ 9.33 | |||
| 50 | $ 8.66 | |||
| 100 | $ 8.05 | |||
| 250 | $ 7.33 | |||
| 500 | $ 6.85 | |||
| 1000 | $ 6.41 | |||
Description
General part information
10052620 Series
4 Connector Receptacle, Female Blade Sockets Board Edge, Through Hole, Right Angle Black Blade Power
