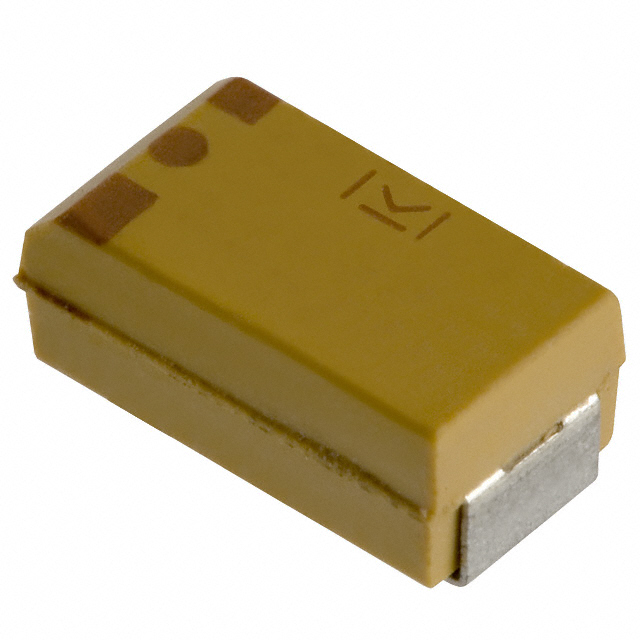

T494C474K050AT

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 0.47 ΜF, 50 V, ± 10%, 1.8 OHM, C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT494C474K050AT Technical Data Sheet EN +1

T494C474K050AT

Active

KEMET

SURFACE MOUNT TANTALUM CAPACITOR, 0.47 ΜF, 50 V, ± 10%, 1.8 OHM, C

Deep-Dive with AI

DocumentsT494C474K050AT Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T494C474K050AT

Capacitance	0.47 µF
ESR (Equivalent Series Resistance)	1.8 Ohm
Features	General Purpose
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6032 Metric
Package / Case	2312
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	3.2 mm
Size / Dimension [y]	0.126 "
Tolerance	10 %
Type	Molded
Voltage - Rated	50 VDC

T494C Series

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Features	Package / Case	Package / Case	Type	Capacitance
KEMET T494C226K010AT	10 V	-55 °C	125 °C	10 %	2000 Hrs	400 mOhms	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	22 µF
KEMET T494C476M020AT	20 V	-55 °C	125 °C	20 %	2000 Hrs	800 mOhm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	47 µF
KEMET T494C685M035AT	35 V	-55 °C	125 °C	20 %	2000 Hrs	900 mOhm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	6.8 ÁF
KEMET T494C336M020AT	20 V	-55 °C	125 °C	20 %	2000 Hrs	400 mOhms	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	33 ÁF
KEMET T494C106M020AT	20 V	-55 °C	125 °C	20 %	2000 Hrs	500 mOhms	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	10 µF
KEMET T494C474K050AT	50 VDC	-55 °C	125 °C	10 %	2000 Hrs	1.8 Ohm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	0.47 µF
KEMET T494C337K004AT	4 V	-55 °C	125 °C	10 %	2000 Hrs	90 mOhm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	330 µF
KEMET T494C336M025AT	25 VDC	-55 °C	125 °C	20 %	2000 Hrs	1 Ohms	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	33 ÁF
KEMET T494C475K020AT	20 V	-55 °C	125 °C	10 %	2000 Hrs	600 mOhm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	4.7 µF
KEMET T494C156K020AT	20 V	-55 °C	125 °C	10 %	2000 Hrs	400 mOhm	3.2 mm	6 mm	0.236 in	0.126 "	Surface Mount	General Purpose	6032 Metric	2312	Molded	15 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.26
		10	$ 0.95
		50	$ 0.86
		100	$ 0.71
	Digi-Reel®	1	$ 1.26
		10	$ 0.95
		50	$ 0.86
		100	$ 0.71
	Tape & Reel (TR)	500	$ 0.57
		1000	$ 0.53
		1500	$ 0.51
		2500	$ 0.49
		3500	$ 0.47
		5000	$ 0.46
		12500	$ 0.43
Newark	Each (Supplied on Full Reel)	1	$ 0.59
		1000	$ 0.57
		2000	$ 0.52
		4000	$ 0.46
		6000	$ 0.45
		10000	$ 0.44

Description

General part information

T494C Series

0.47 µF Molded Tantalum Capacitors 50 V 2312 (6032 Metric) 1.8Ohm @ 100kHz

Documents

Technical documentation and resources

T494C474K050AT

Technical Data Sheet EN

Datasheet

Manufacturer Catalogue EN

Datasheet
