10117865-352TSLF
ActiveAmphenol ICC (FCI)

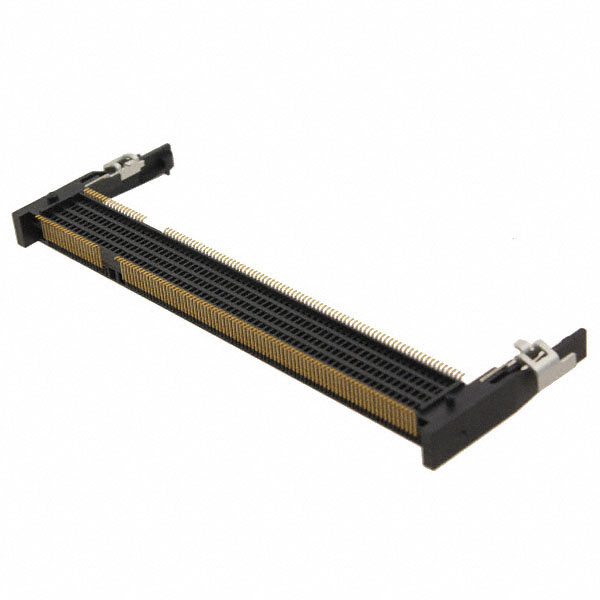

CONN SKT SODIMM 200POS SMD REV
Deep-Dive with AI
Search across all available documentation for this part.
10117865-352TSLF
ActiveAmphenol ICC (FCI)
CONN SKT SODIMM 200POS SMD REV
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10117865-352TSLF |
|---|---|
| Card Thickness | 0.039 in |
| Card Thickness | 1 mm |
| Color | Black |
| Connector Style | SODIMM |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Height [diameter] | 0.205 in |
| Height [diameter] | 5.2 mm |
| Insertion Angle | 30 ° |
| Memory Type | DDR2 SDRAM |
| Mounting Feature | Reverse |
| Mounting Type | Surface Mount |
10117865 Series
| Part | Connector Style | Contact Finish Thickness | Color | Memory Type | Contact Finish | Height [diameter] | Height [diameter] | Mounting Type | Insertion Angle | Features | Mounting Feature | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | SODIMM | Flash | Black | DDR2 SDRAM | Gold | 0.205 in | 5.2 mm | Surface Mount | 30 ° | Board Guide | Reverse | 0.039 in | 1 mm | ||
Amphenol ICC (FCI) | SODIMM | Flash | Black | DDR2 SDRAM | Gold | 0.205 in | 5.2 mm | Surface Mount | 30 ° | Board Guide | Reverse | 0.039 in | 1 mm | ||
Amphenol ICC (FCI) | SODIMM | Black | DDR2 SDRAM | Gold | 0.205 in | 5.2 mm | Surface Mount | 30 ° | Reverse | 0.039 in | 1 mm | 0.3 Ám | 11.8 Áin | ||
Amphenol ICC (FCI) | SODIMM | Black | DDR2 SDRAM | Gold | 0.205 in | 5.2 mm | Surface Mount | 30 ° | Board Guide | Reverse | 0.039 in | 1 mm | 0.3 Ám | 11.8 Áin | |
Amphenol ICC (FCI) | SODIMM | Flash | Black | DDR2 SDRAM | Gold | 0.205 in | 5.2 mm | Surface Mount | 30 ° | Board Guide | Reverse | 0.039 in | 1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10117865 Series
200 Position SODIMM DDR2 SDRAM Socket Surface Mount
