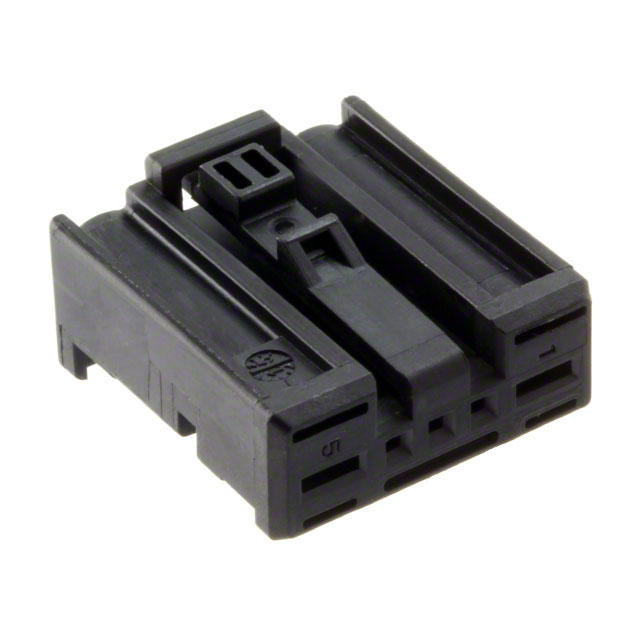

1379217-3

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 5POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	1379217-3

Color	Black
Connector Type	Receptacle
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

CONN RCPT HSG 5POS 2.54MM

Part	Contact Type	Insulation Material	Color	Mounting Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Fastening Type
TE Connectivity AMP Connectors 1379217-3	Female Socket	Polybutylene Terephthalate (PBT), Glass Filled	Black	Free Hanging (In-Line)	Contacts Not Included	100 °C	-40 °C	1	Receptacle	2.54 mm	0.1 in	Locking Ramp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (3 + 2 Power) Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
