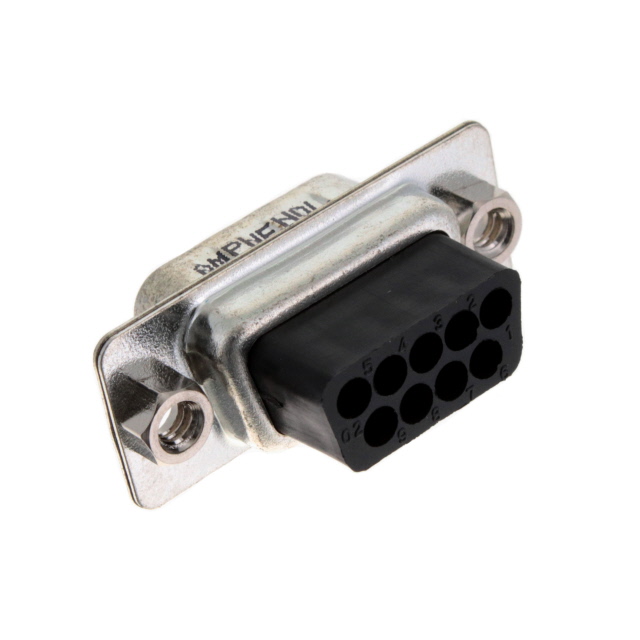

L777RREH09P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 9POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L777RREH09P
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING PLUG 9POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L777RREH09P |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug for Male Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Board Side, 4-40 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.12 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.76 | |||
| 40 | $ 0.72 | |||
| 80 | $ 0.67 | |||
| 230 | $ 0.60 | |||
| 440 | $ 0.56 | |||
| 945 | $ 0.51 | |||
| 2400 | $ 0.47 | |||
Description
General part information
L777RREH09 Series
Plug for Male Contacts Housing D-Sub Connector 9 Position
