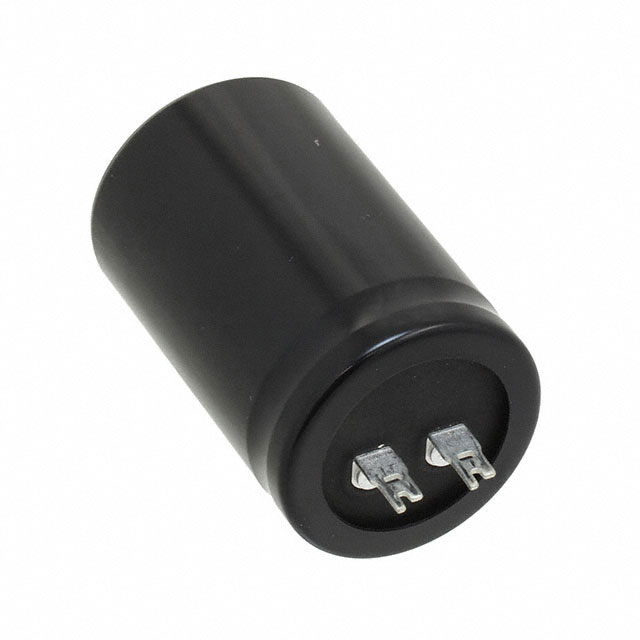

ALT22A103CD063

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, ALT22 SERIES, 10000 F, 20%, 63 V, 35 MM, 0.042 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

KEMET

ELECTROLYTIC CAPACITOR, LONG LIFE, ALT22 SERIES, 10000 F, 20%, 63 V, 35 MM, 0.042 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Applications	Tolerance	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lifetime @ Temp.
KEMET ALT22A472DD100	Through Hole	0.394 in	10 mm	Radial Can - Snap-In	General Purpose	20 %	100 V	85 °C	-40 °C	1.575 "	40 mm	4700 µF	57 mm	2.244 "	Polar
KEMET ALT22A103CB040	Through Hole	0.394 in	10 mm	Radial Can - Snap-In	General Purpose	20 %	40 V	85 °C	-40 °C	1.378 in	35 mm	10000 µF	47 mm	1.85 in	Polar	18000 Hrs
KEMET ALT22A471DD385	Through Hole	0.394 in	10 mm	Radial Can - Snap-In	General Purpose	20 %	385 V	85 °C	-40 °C	1.575 "	40 mm	470 µF	57 mm	2.244 "	Polar
KEMET ALT22A472BB063	Through Hole	0.394 in	10 mm	Radial Can - Snap-In	General Purpose	20 %	63 V	85 °C	-40 °C	1.181 inches	30 mm	4700 µF	47 mm	1.85 in	Polar	15000 Hrs
KEMET ALT22A103CD063	Chassis Mount	0.394 in	10 mm	Radial Can - Snap-In	General Purpose	20 %	63 V	85 °C	-40 °C	1.378 in	35 mm	10000 µF	57 mm	2.244 "	Polar	18000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 18000 Hrs @ 85°C
