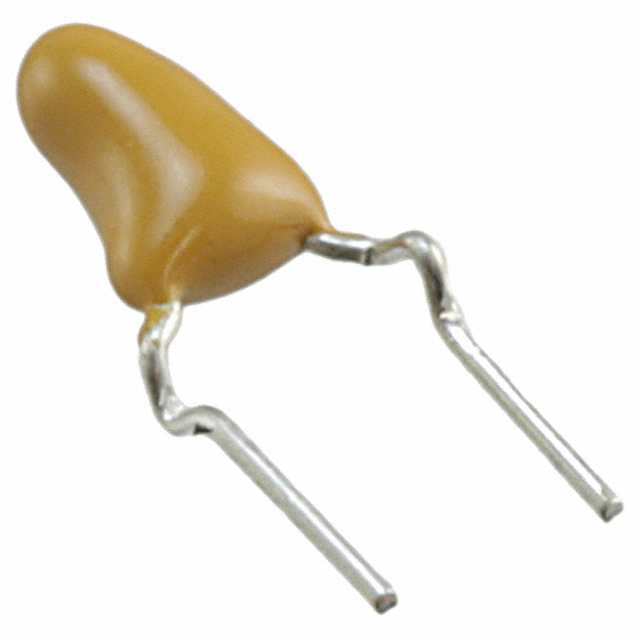

T352A105K025AT

Active

KEMET

CAP TANT 1UF 10% 25V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 1UF 10% 25V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T352A105K025AT

Capacitance	1 µF
ESR (Equivalent Series Resistance)	10 Ohm
Features	General Purpose
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.175 in
Size / Dimension [diameter]	4.45 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	25 VDC

Part	Voltage - Rated	Type	ESR (Equivalent Series Resistance)	Features	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Manufacturer Size Code	Capacitance
KEMET T352A105K035AT	35 V	Conformal Coated	8 Ohm	General Purpose	5.08 mm	0.2 in	10.2 mm	0.402 "	-55 °C	125 °C	Radial	10 %	0.177 "	4.5 mm	Through Hole	A	1 µF
KEMET T352A105K025AT	25 VDC	Conformal Coated	10 Ohm	General Purpose	5.08 mm	0.2 in	10.16 mm	0.4 in	-55 °C	125 °C	Radial	10 %	0.175 in	4.45 mm	Through Hole	A	1 µF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.62
