ZA9L10D1NW2CSGA499

Active

Analog Devices Inc./Maxim Integrated

IC MCU 32BIT EXT MEM 256BGA

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC MCU 32BIT EXT MEM 256BGA

Technical Specifications

Parameters and characteristics for this part

Specification	ZA9L10D1NW2CSGA499

Connectivity	EBI/EMI, USB OTG, UART/USART, SPI, SmartCard
Core Processor	ARM9®
Core Size [Max]	32 Bit
Core Size [Min]	16 Bit
Data Converters [custom]	10
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	76
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External

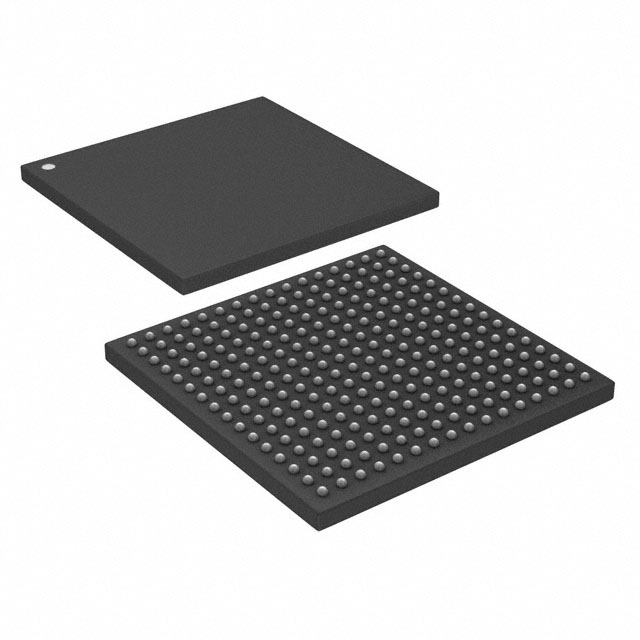

Package / Case	CSBGA, 256-LBGA
Peripherals	Magnetic Card Reader, WDT, LCD, DMA, POR, PWM
Program Memory Type	External Program Memory
RAM Size	64 K
Speed	192 MHz
Supplier Device Package	256-CSBGA (17x17)
Voltage - Supply (Vcc/Vdd)	1.8 V, 3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC MCU 32BIT EXT MEM 256BGA

Part	Package / Case	Speed	Number of I/O	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd)	Program Memory Type	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Peripherals	Supplier Device Package	RAM Size	Oscillator Type	Core Size [Min]	Core Size [Max]	Mounting Type	Core Processor
Analog Devices Inc./Maxim Integrated ZA9L10D1NW2CSGA499	256-LBGA, CSBGA	192 MHz	76	10	4	1.8 V, 3.3 V	External Program Memory	85 °C	-40 °C	EBI/EMI, SmartCard, SPI, UART/USART, USB OTG	DMA, LCD, Magnetic Card Reader, POR, PWM, WDT	256-CSBGA (17x17)	64 K	External	16 Bit	32 Bit	Surface Mount	ARM9®

General part information

ARM9® Zatara® Microcontroller IC 16/32-Bit 192MHz External Program Memory 256-CSBGA (17x17)
