JN1AS10UL1

Active

JAE Electronics

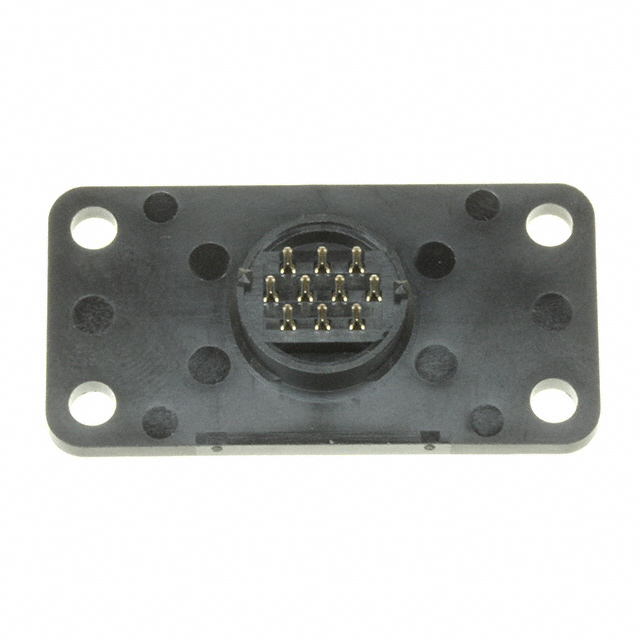

CONN RCPT MALE 10POS GOLD SOLDER

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 10POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	JN1AS10UL1

Cable Opening [diameter]	12 mm
Cable Opening [diameter]	0.472 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.099 µm
Contact Finish Thickness - Mating	3.9 µin
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Fastening Type	Push-Twist
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Orientation	N
Primary Material	Plastic
Shell Material	Synthetic Resin
Shell Size - Insert	S
Termination	Solder

Part	Color	Orientation	Number of Positions	Termination	Contact Material	Insert Material	Shell Size - Insert	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Mounting Feature	Mounting Type	Current Rating (Amps)	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]
JAE Electronics JN1AS10UL1	Black	N	10	Solder	Copper Alloy	Synthetic Resin	S	Gold	0.099 µm	3.9 µin	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Push-Twist	-20 C	125 °C	Synthetic Resin	Flange	Panel Mount Through Hole	3 A	Plastic	12 mm	0.472 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Male Pins Solder
