A606CHAL

Active

Hoffman Enclosures, Inc.

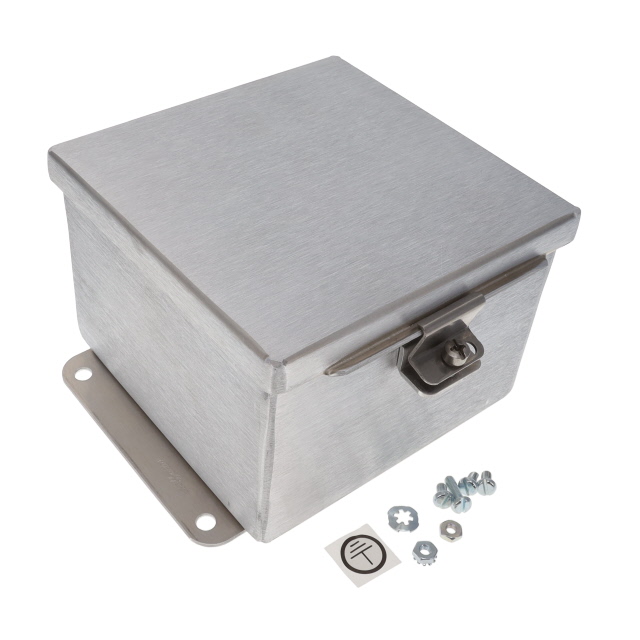

JUNCTION BOX ALUM 5.98"LX5.98"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A606CHAL

Active

Hoffman Enclosures, Inc.

JUNCTION BOX ALUM 5.98"LX5.98"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 339.32
		5	$ 308.00

Description

General part information

A606 Series

Junction Box Metal, Aluminum Natural Hinged Door, Lid 5.984" L x 5.984" W (152.00mm x 152.00mm) X 4.016" (102.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A606CHAL	A606 Series

Area (L x W)	35.8 in²	35.8 in²
Area (L x W)	231 cm²	231 cm²
Color	Natural	Natural, Gray
Container Type	Junction Box	Junction Box
Design	Hinged Door, Lid	Hinged Door, Lid, Cover Included
Features	Sealing Gasket, Wall Mount	Sealing Gasket, Wall Mount, Stainless Steel Hinge, Stainless Steel Hinges
Height [z]	4.016 in	4.016 in
Height [z]	102 mm	102 mm
Material	Metal, Aluminum	Metal, Aluminum, Steel
Ratings	12, IP65, NEMA 3RX, 50E, UL-50, 13	12, IP65, NEMA 3RX, 50E, UL-50, 13, IP66, UL-508A, 4X, NEMA 3R, 4, NEMA 13, NEMA 12
Size / Dimension [x]	5.984 in	5.984 in
Size / Dimension [x]	152 mm	152 mm
Size / Dimension [y]	5.984 in	5.984 in
Size / Dimension [y]	152 mm	152 mm
Thickness	-	14 - 16 Gauge
Weight	816.5 g	816.5 g
Weight	1.8 lbs	1.8 - 2 lbs
Weight	-	4 - 4.4 lbs

A606 Series

JUNCTION BOX ALUM 5.98"LX5.98"W

Part	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Material	Container Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Color	Ratings	Features	Design	Thickness	Weight
Hoffman Enclosures, Inc. A606CHAL	35.8 in²	231 cm²	4.016 in	102 mm	Aluminum, Metal	Junction Box	5.984 in	5.984 in	152 mm	152 mm	816.5 g	1.8 lbs	Natural	12, 13, 50E, IP65, NEMA 3RX, UL-50	Sealing Gasket, Wall Mount	Hinged Door, Lid
Hoffman Enclosures, Inc. A606CHNFSS6	35.8 in²	231 cm²	4.016 in	102 mm		Junction Box	5.984 in	5.984 in	152 mm	152 mm		2 kg	Natural	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	Sealing Gasket, Stainless Steel Hinge, Wall Mount	Hinged Door, Lid	16 Gauge	4.4 lbs
Hoffman Enclosures, Inc. A606CHQR	35.8 in²	231 cm²	4.016 in	102 mm	Metal, Steel	Junction Box	5.984 in	5.984 in	152 mm	152 mm		1.8 kg	Gray	IP65, NEMA 12, NEMA 13, UL-508A	Sealing Gasket, Wall Mount	Hinged Door, Lid	16 Gauge	4 lbs
Hoffman Enclosures, Inc. A606LP	35.8 in²	231 cm²	4.016 in	102 mm	Metal, Steel	Junction Box	5.984 in	5.984 in	152 mm	152 mm		1.8 kg	Gray	50E, IP65, NEMA 12, NEMA 13, UL-50	Sealing Gasket, Wall Mount	Cover Included	14 Gauge	4 lbs
Hoffman Enclosures, Inc. A606CHNF	35.8 in²	231 cm²	4.016 in	102 mm	Metal, Steel	Junction Box	5.984 in	5.984 in	152 mm	152 mm		2 kg	Gray		Stainless Steel Hinges, Wall Mount	Hinged Door, Lid	16 Gauge	4.3 lbs
Hoffman Enclosures, Inc. A606NFSS	35.8 in²	231 cm²	4.016 in	102 mm		Junction Box	5.984 in	5.984 in	152 mm	152 mm		1.9 kg	Natural	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	Sealing Gasket, Wall Mount	Cover Included	16 Gauge	4.2 lbs
Hoffman Enclosures, Inc. A606CHNFSS	35.8 in²	231 cm²	4.016 in	102 mm		Junction Box	5.984 in	5.984 in	152 mm	152 mm		1.9 kg	Natural	12, 13, 4, 4X, IP66, NEMA 3R, UL-508A	Sealing Gasket, Stainless Steel Hinge, Wall Mount	Hinged Door, Lid	16 Gauge	4.1 lbs
