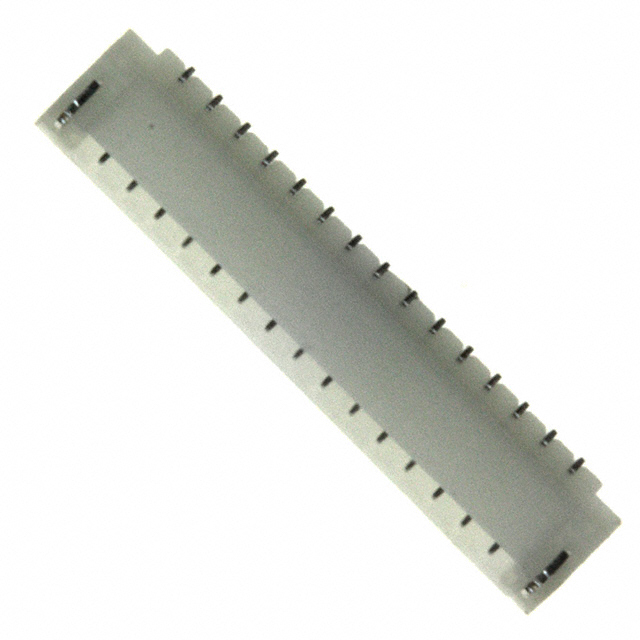

SM15B-SURS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 15POS 0.8MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 15POS 0.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM15B-SURS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	0.2 A, 0.5 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.069 in
Insulation Height	1.75 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	30 VDC

Part	Material Flammability Rating	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Type	Shrouding	Voltage Rating	Number of Positions	Termination	Connector Type	Style	Insulation Material	Features	Mounting Type	Insulation Color	Current Rating (Amps)	Contact Shape	Number of Positions Loaded
JST Sales America Inc. SM15B-SURS-TF	UL94 V-0	1	Push-Pull	-25 °C	85 °C	Copper Alloy	0.069 in	1.75 mm	Tin	0.031 in	0.8 mm	Outer Shroud Contact	Shrouded - 4 Wall	30 VDC	15	Solder	Header	Board to Cable/Wire	Nylon Polyamide (PA)	Solder Retention	Surface Mount Right Angle	Natural	0.2 A 0.5 A	Rectangular	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3500	$ 0.69

General part information

Connector Header Surface Mount, Right Angle 15 position 0.031" (0.80mm)
