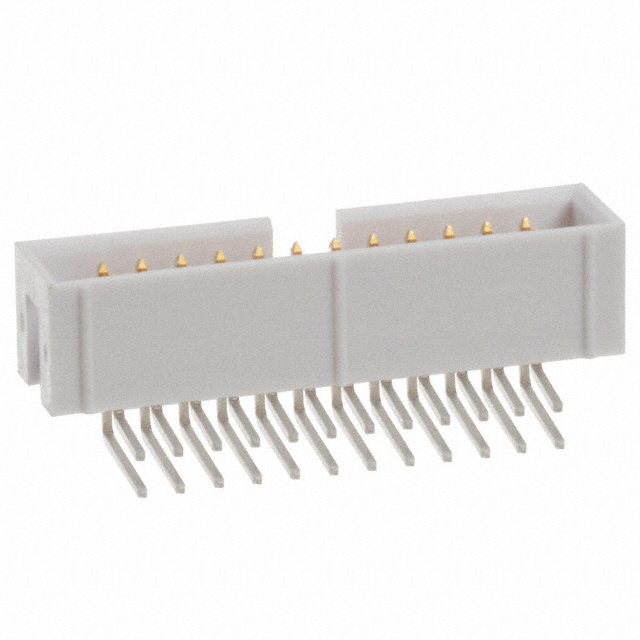

AWHW 24A-0202-T

Active

Assmann WSW Components

CONN HEADER R/A 24POS 2.54MM

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER R/A 24POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 24A-0202-T

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating [x]	0.224 in
Contact Length - Mating [x]	5.7 mm
Contact Length - Post	3.15 mm
Contact Length - Post	0.124 "
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	0.352 in
Insulation Height	8.95 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Material	Number of Rows	Style	Features	Termination	Contact Shape	Current Rating (Amps)	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish - Post	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Insulation Material	Number of Positions	Fastening Type	Contact Type	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating
Assmann WSW Components AWHW24G-0102-T-R	30 Áin	0.76 Ám	Through Hole	Brass	2	Board to Cable/Wire	Keying Slot	Solder	Square	3 A	Gray	0.1 in	2.54 mm	All	Tin	9 mm	0.354 in	0.224 in	5.7 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	24	Push-Pull	Male Pin	Gold	0.13 in	3.3 mm	Header	Shrouded - 4 Wall	2.54 mm	0.1 in	-40 °C	105 ░C
Assmann WSW Components AWHW 24A-0202-T			Through Hole Right Angle	Brass	2	Board to Cable/Wire	Keying Slot	Solder	Square	3 A	Gray	0.1 in	2.54 mm	All	Tin	8.95 mm	0.352 in	0.224 in	5.7 mm	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	24	Push-Pull	Male Pin	Gold	0.124 "	3.15 mm	Header	Shrouded - 4 Wall	2.54 mm	0.1 in	-40 °C	105 ░C	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
