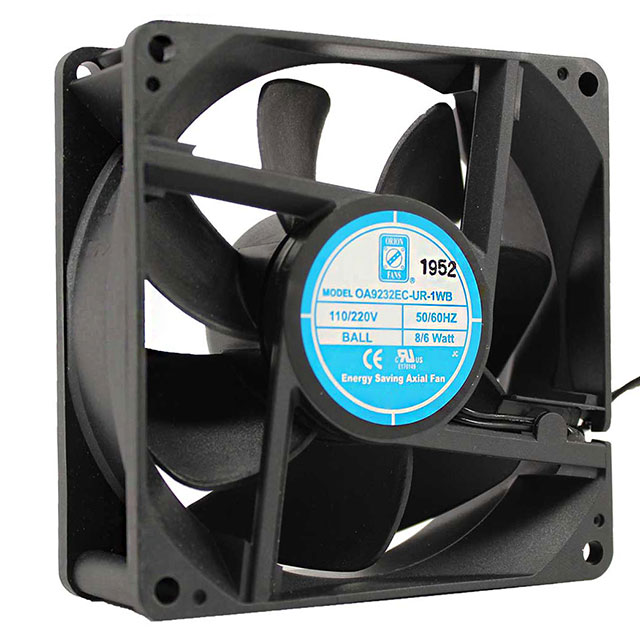

OA9232EC-UR-1WB

Active

Orion Fans

EC FAN 92X32MM 85-265VAC 56CFM

Search across all available documentation for this part.

Active

Orion Fans

EC FAN 92X32MM 85-265VAC 56CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OA9232EC-UR-1WB

Air Flow	1.62 mł/min
Air Flow	58 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Dual Voltage, Electronic Commutation (EC)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	43 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2.1 W
RPM	3000 RPM
Static Pressure	0.23 in H2O
Static Pressure	57.3 Pa
Termination	2 Wire Leads
Voltage - Rated [Max]	220 VAC
Voltage - Rated [Min]	110 VAC
Voltage Range [Max]	265 VAC
Voltage Range [Min]	85 VAC
Width [y]	32 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Noise	Voltage - Rated [Min]	Voltage - Rated [Max]	Bearing Type	Power (Watts)	Fan Type	Air Flow	Air Flow	Termination	Approval Agency	RPM	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Lifetime @ Temp.	Features	Material - Blade
Orion Fans OA9232EC-UR-1WB	265 VAC	85 VAC	43 dB	110 VAC	220 VAC	Ball	2.1 W	Tubeaxial	1.62 mł/min	58 CFM	2 Wire Leads	CE cURus TUV UR	3000 RPM	0.23 in H2O	57.3 Pa	70 °C	70 °C	-10 °C	-10 °C	32 mm	70000 Hrs	Dual Voltage Electronic Commutation (EC)	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 110/220VAC Square - 92mm L x 92mm H Ball 58.0 CFM (1.62m³/min) 2 Wire Leads
