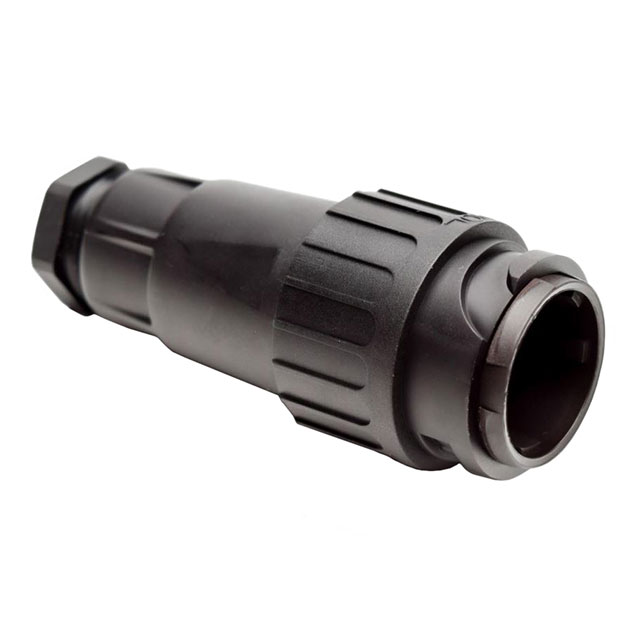

C01610H0170021

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 18POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 18POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610H0170021

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Includes	1 Backshell, 1 Cage Clamp, 1 Cable Nut, 1 Connector, 1 Gasket
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	17, 18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Male Pins

Part	Contact Shape	Shell Size - Insert	Orientation	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Color	Type	Features	Shell Material	Contact Size	Shielding	Fastening Type	Mounting Type	Ingress Protection	Includes	Contact Type	Note
Amphenol Tuchel Industrial C01610H0170021	Circular	1	N	UL94 V-0	17 18	125 °C	-40 °C	Plug Housing	Black	For Male Pins	Backshell Coupling Nut	Polyamide (PA66) Nylon 6/6	1.5 mm	Unshielded	Bayonet Lock	Free Hanging (In-Line)	IP65 - Dust Tight Water Resistant	1 Backshell 1 Cable Nut 1 Cage Clamp 1 Connector 1 Gasket	Crimp	Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 (17 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
