51-378.F22D

Active

EAO

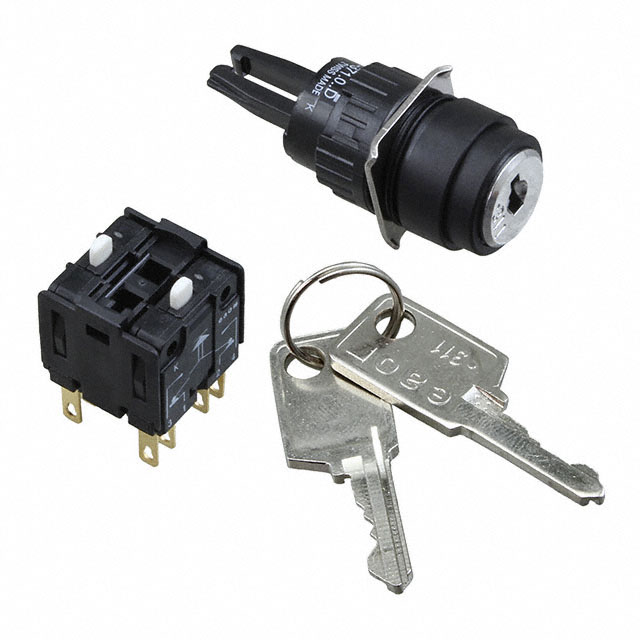

SWITCH KEYLOCK 3POS 4PST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 3POS 4PST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-378.F22D

Actuator Type	Flat Key
Angle of Throw	42 °, 90 °
Circuit	4PST-2NO/2NC
Contact Finish	Gold
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange [z]	42 mm
Features	IP65
Key Removable Positions	Left, Center
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Off-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	250 V

SWITCH KEYLOCK 3POS 4PST 5A 250V

Part	Panel Cutout Dimensions [diameter]	Contact Material	Switch Function	Angle of Throw	Termination Style	Termination Style	Termination Style	Depth Behind Flange [z]	Features	Voltage Rating - AC	Actuator Type	Current Rating (Amps)	Contact Timing	Key Removable Positions	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish
EAO 51-378.F22D	16.2 mm	Silver (Ag)	On-Off-Mom	42 °, 90 °	0.11 in	Quick Connect, Solder	2.8 mm	42 mm	IP65	250 V	Flat Key	5 A	Not Specified	Center, Left	4PST-2NO/2NC	55 °C	-25 °C	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 3 Position 4PST-2NO/2NC 5A (AC) 250 VAC DC Panel Mount
