62PP022RG09
ActiveEssentra Access Solutions

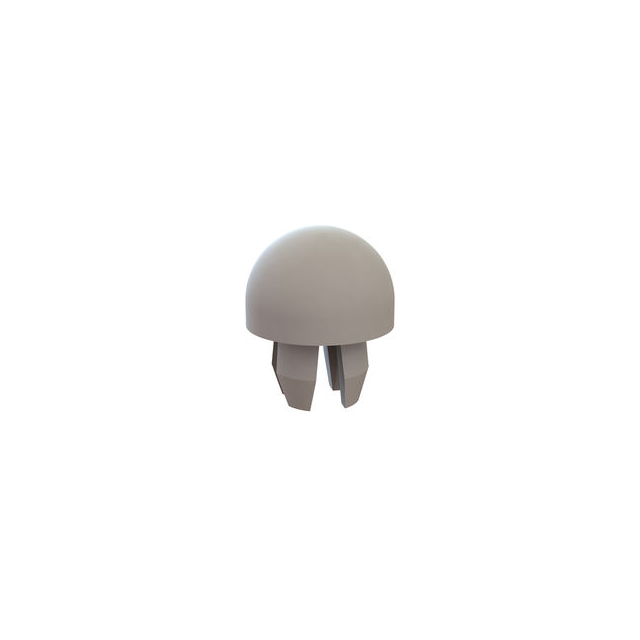

HOLE PLUG, .218 HOLE, .031-.094
Deep-Dive with AI
Search across all available documentation for this part.
62PP022RG09
ActiveEssentra Access Solutions
HOLE PLUG, .218 HOLE, .031-.094
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 62PP022RG09 |
|---|---|
| Color | Natural |
| Flange Diameter | 0.375 " |
| Flange Diameter | 9.53 mm |
| Flange Diameter [diameter] | 0.375 in |
| Hole Diameter | 5.54 mm |
| Hole Diameter | 0.218 " |
| Material | Nylon |
| Panel Thickness [Max] | 2.39 mm |
| Panel Thickness [Max] | 0.094 " |
| Panel Thickness [Min] | 0.79 mm |
| Panel Thickness [Min] | 0.031 " |
| Type | Body Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.23 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.17 | |||
| 50 | $ 0.16 | |||
| 100 | $ 0.15 | |||
| 250 | $ 0.13 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.10 | |||
| 3000 | $ 0.09 | |||
Description
General part information
62PP022R Series
Hole Plug 0.218" (5.54mm) Nylon Natural
Documents
Technical documentation and resources
No documents available
