1056555-1

Active

TE Connectivity Aerospace, Defense and Marine

SCD,2062 5050 24,SMA

Deep-Dive with AI

Search across all available documentation for this part.

1056555-1

Active

TE Connectivity Aerospace, Defense and Marine

SCD,2062 5050 24,SMA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 73.39

Description

General part information

1056 Series

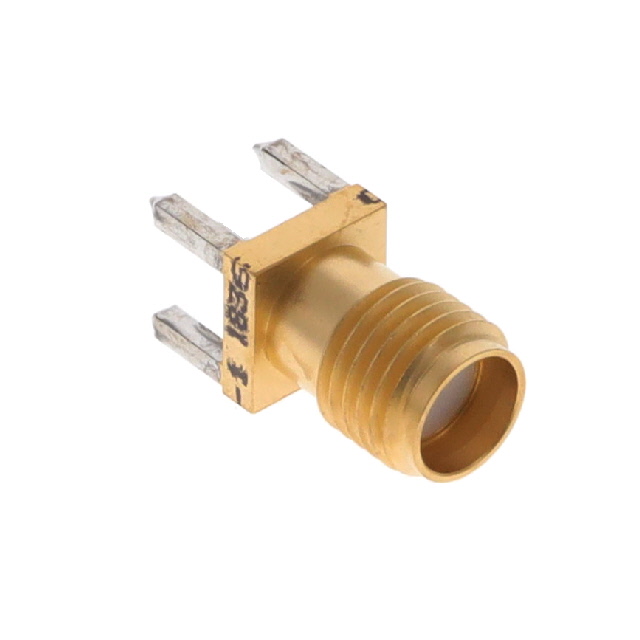

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1056555-1	1056 Series

Accessory Type	-	Shroud, Housing
Adapter Series	-	SMA to OSMP
Adapter Type	-	Plug to Plug
Body Finish	Gold	Gold
Body Material	Stainless Steel	Beryllium Copper, Stainless Steel
Cable Group	-	Semi Rigid, RG-405 (.085" Semi Rigid)
Cable Group	-	0.047 in
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Color	-	Silver
Connector Style	SMA	SMA
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Conversion Type	-	Between Series
Convert From (Adapter End)	-	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)	Tetrafluoroethylene (TFE), Polytetrafluoroethylene (PTFE)
Fastening Type	-	Snap-On, Threaded
Features	-	EMI Ring, Full Detent, Flange Mount (2 Hole)
For Use With/Related Products	-	SMP Connectors
Frequency - Max [Max]	18 GHz	18 - 40 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Includes	-	Insulator, Connector, Contact
Mounting Type	Through Hole	Free Hanging (In-Line), Right Angle, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Style	-	Straight
Voltage Rating	-	335 V

1056 Series

2908 5006 62

Part	Housing Color	Voltage Rating	Fastening Type	Impedance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shield Termination	Features	Center Contact Material	Center Contact Plating	Dielectric Material	Body Finish	Number of Ports	Cable Group	Cable Group	Frequency - Max [Max]	Contact Termination	Body Material	Accessory Type	For Use With/Related Products	Color	Style	Center Gender	Adapter Type	Adapter Series	Conversion Type	Convert From (Adapter End)	Includes	Connector Style
TE Connectivity Aerospace, Defense and Marine 1056550-1	Gold	335 V	Snap-On	50 Ohms	Free Hanging (In-Line), Right Angle	-65 ░C	165 °C	Female Socket, Jack	Solder	EMI Ring	Beryllium Copper	Gold	Tetrafluoroethylene (TFE)	Gold	1	Semi Rigid	0.047 in	26.5 GHz	Solder	Beryllium Copper
TE Connectivity Aerospace, Defense and Marine 1056741-1										Flange Mount (2 Hole), Full Detent										Stainless Steel	Shroud	SMP Connectors	Silver
TE Connectivity Aerospace, Defense and Marine 1056742-1										Full Detent										Stainless Steel	Housing	SMP Connectors	Silver
TE Connectivity Aerospace, Defense and Marine 1056706-1			Snap-On, Threaded	50 Ohms	Free Hanging (In-Line)						Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)							Stainless Steel				Straight	Male to Male	Plug to Plug	SMA to OSMP	Between Series	SMA Plug, Male Pin
TE Connectivity Aerospace, Defense and Marine 1056522-1	Gold	335 V	Snap-On	50 Ohms	Free Hanging (In-Line)	-65 ░C	165 °C	Female Socket, Jack	Solder	EMI Ring	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	RG-405 (.085" Semi Rigid)		40 GHz	Solder	Beryllium Copper										Connector, Contact, Insulator
TE Connectivity Aerospace, Defense and Marine 1056555-1	Gold			50 Ohms	Through Hole	-65 ░C	165 °C	Female Socket, Jack	Solder		Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Gold	1			18 GHz	Solder	Stainless Steel											SMA
